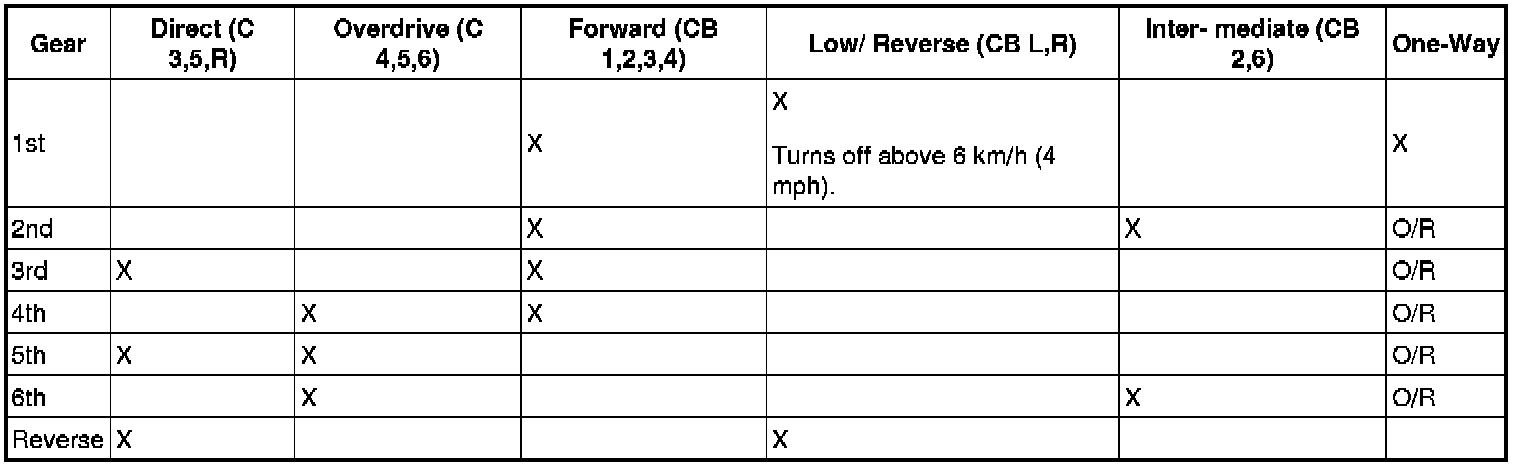

Clutch Application Chart
SPECIFICATIONS
Clutch Application Chart
-
CB = Clutch brake
-
O/R = Overrunning
