Mass Air Flow (MAF) Sensor Removal/Installation - 2.5L

Disconnect the mass air flow (MAF) sensor electrical connector.
Remove the 2 screws and the MAF sensor.
- To install, tighten to 10 N.m {1.0 kgf.m, 89 in.lbf}.
To install, reverse the removal procedure.

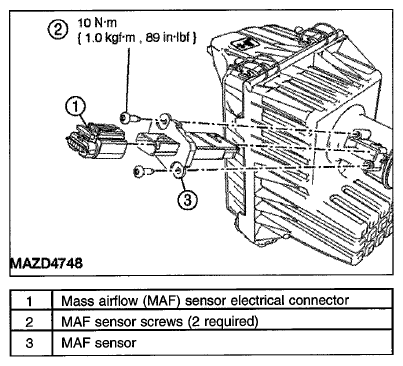

Fig 1: Identifying Mass Air Flow (MAF) Sensor Electrical Connector And Screws (2.5L)
Courtesy of MAZDA MOTORS CORP.
