How To Read System Circuit Diagrams

SYSTEM CIRCUIT DIAGRAM/CONNECTOR DIAGRAM

- These diagrams show the circuits for each system, from the power supply to the ground. The power supply side is on the upper part of the diagram, the ground side on the lower part. The diagrams describe circuits with the ignition switch off.

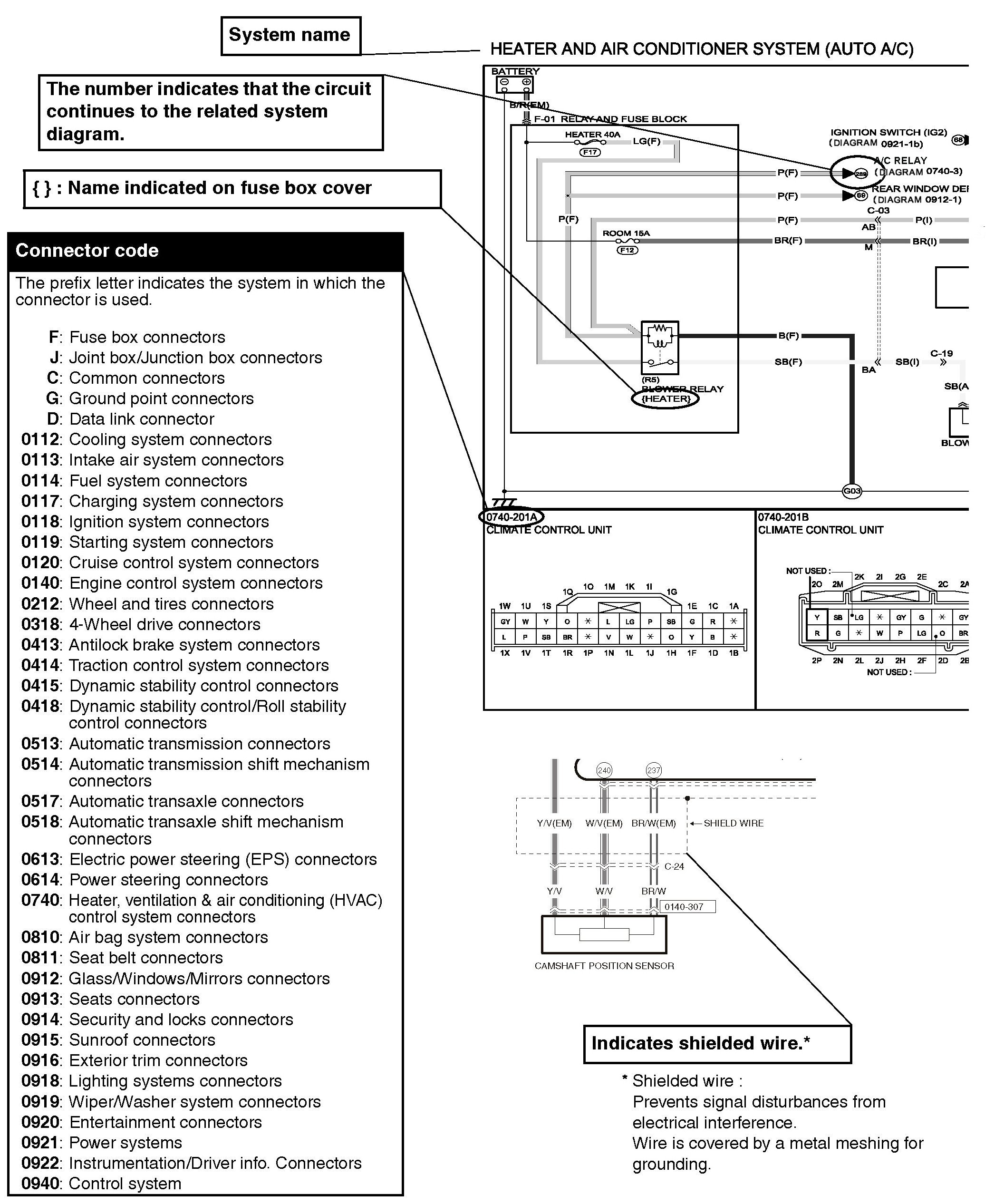

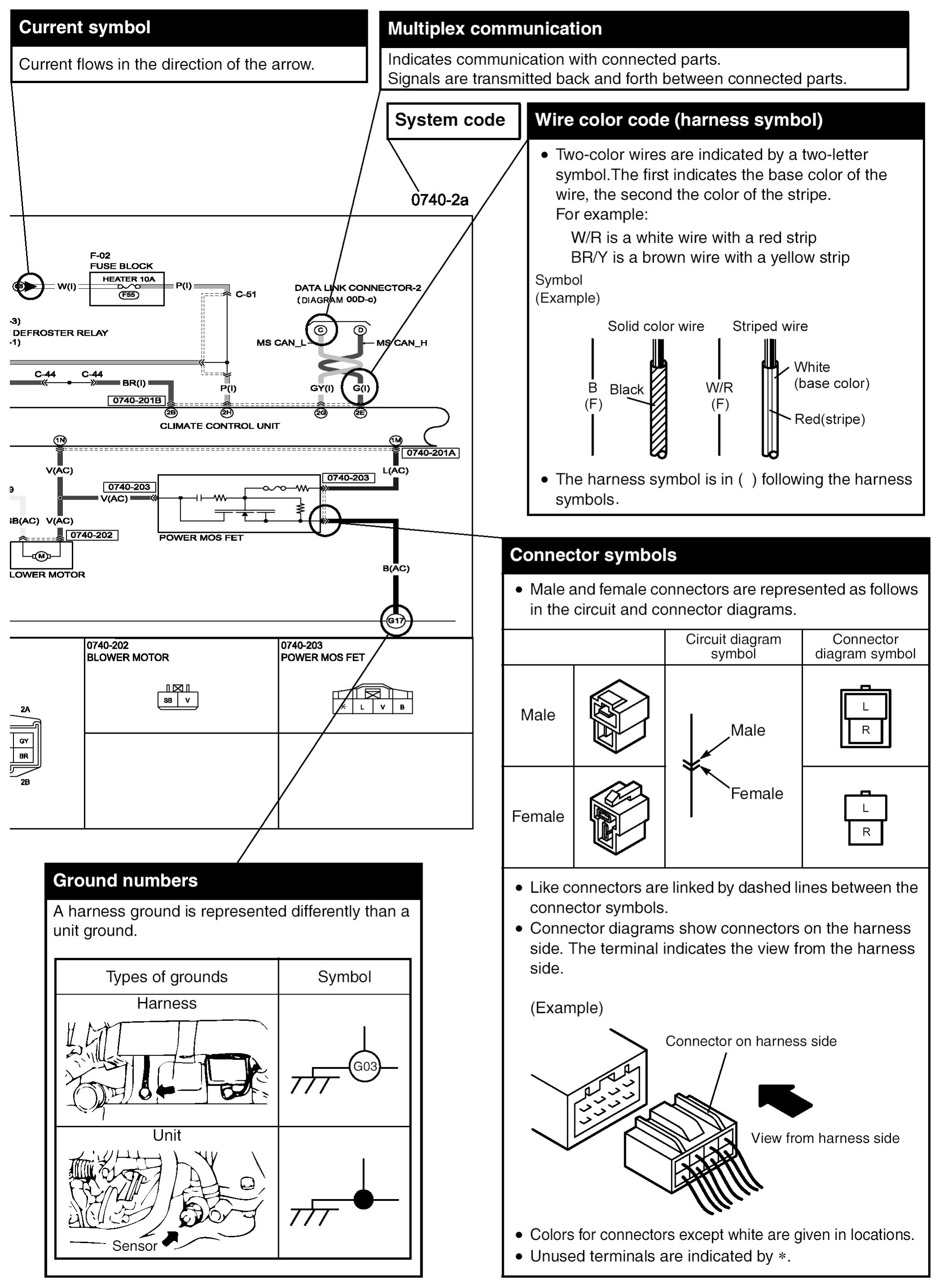

Below is an explanation of the various points in the diagram.
