Engine Control System MZR 1.5
>>
CONTROL SYSTEM DIAGRAM Input device
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CONTROL SYSTEM DIAGRAM Input device

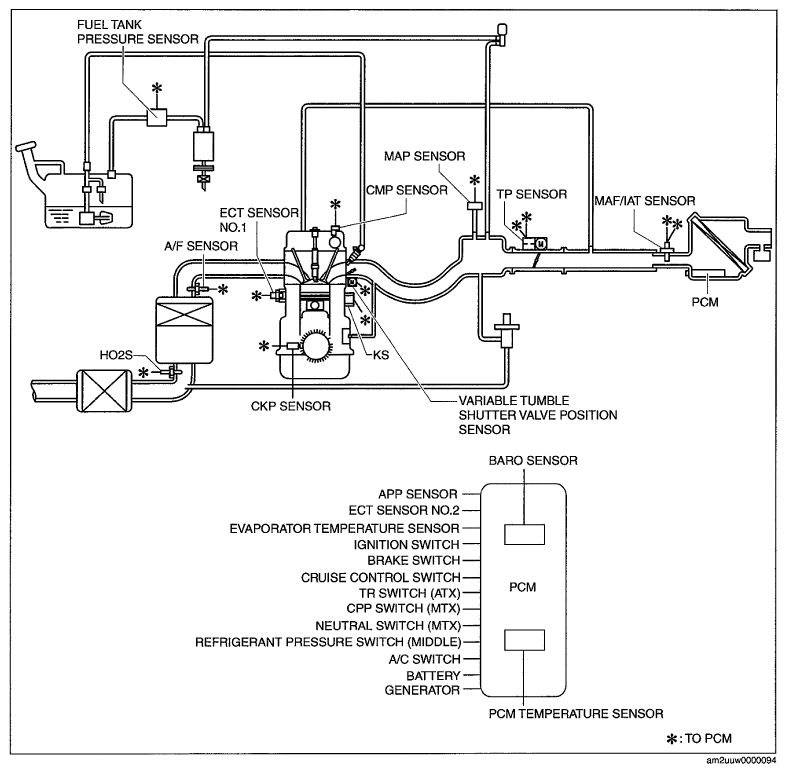

Input device
Fig 1: Identifying Control System Input Device
Courtesy of MAZDA MOTORS CORP.

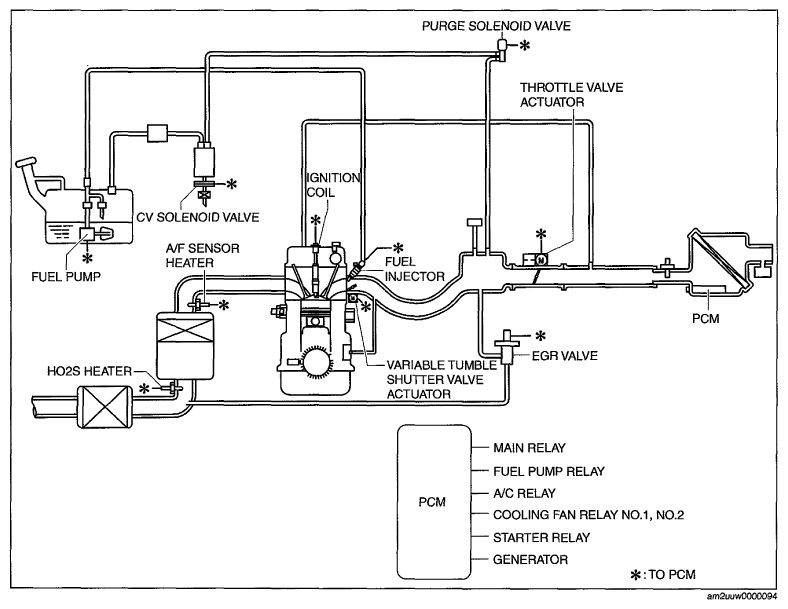

Output device
Fig 2: Identifying Control System Output Device
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
