Control System Location Index

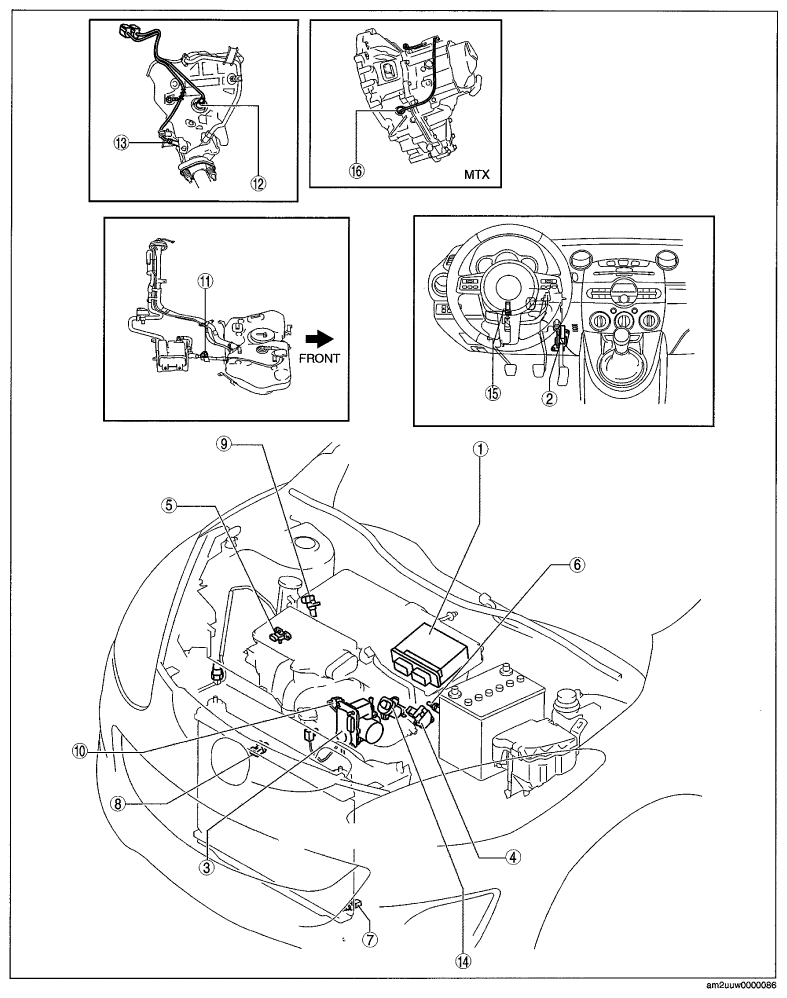

Fig 1: Identifying Control System Location
G06940741Courtesy of MAZDA MOTORS CORP.

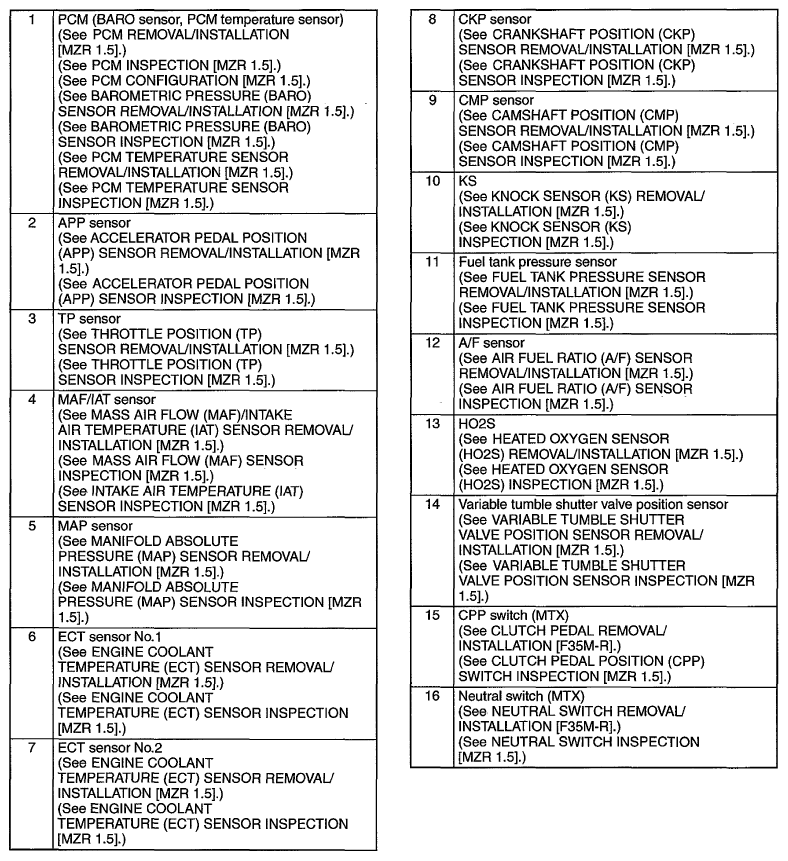

Fig 2: Control System Legends
G06940742Courtesy of MAZDA MOTORS CORP.
