ECT Sensor No. 2 Removal/Installation

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  3. Disconnect the ECT sensor No. 2 connector.
  4. Remove the ECT sensor No. 2 using the SST.
  5. Install in the reverse order of removal.
  6. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

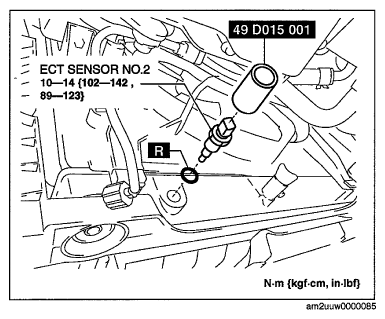

    Fig 1: Removing ECT Sensor No. 2 Using SST (49 D015 001) With Torque Specifications
    G06940764Courtesy of MAZDA MOTORS CORP.
