Theft-Deterrent System

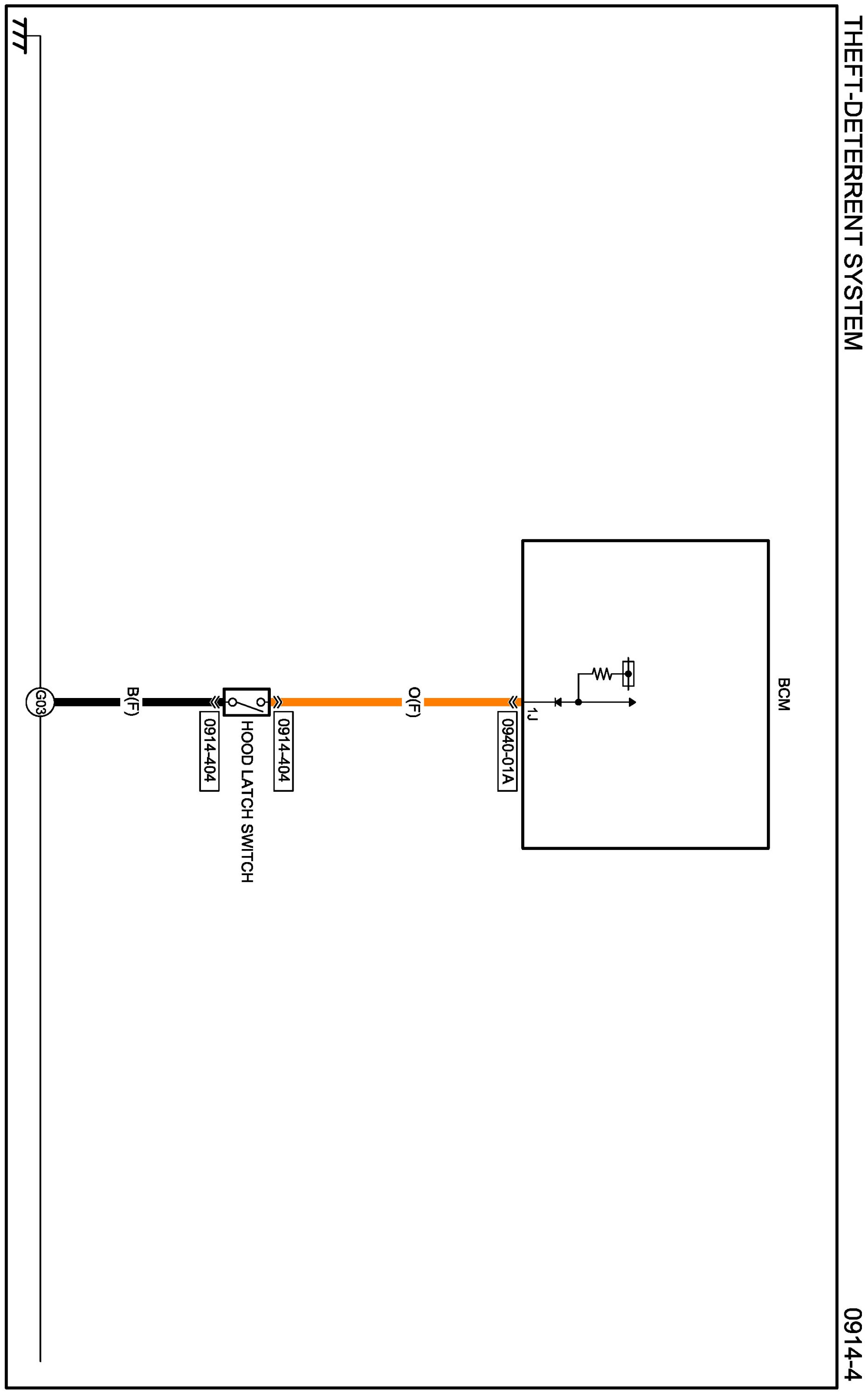

Diagram 0914-4:

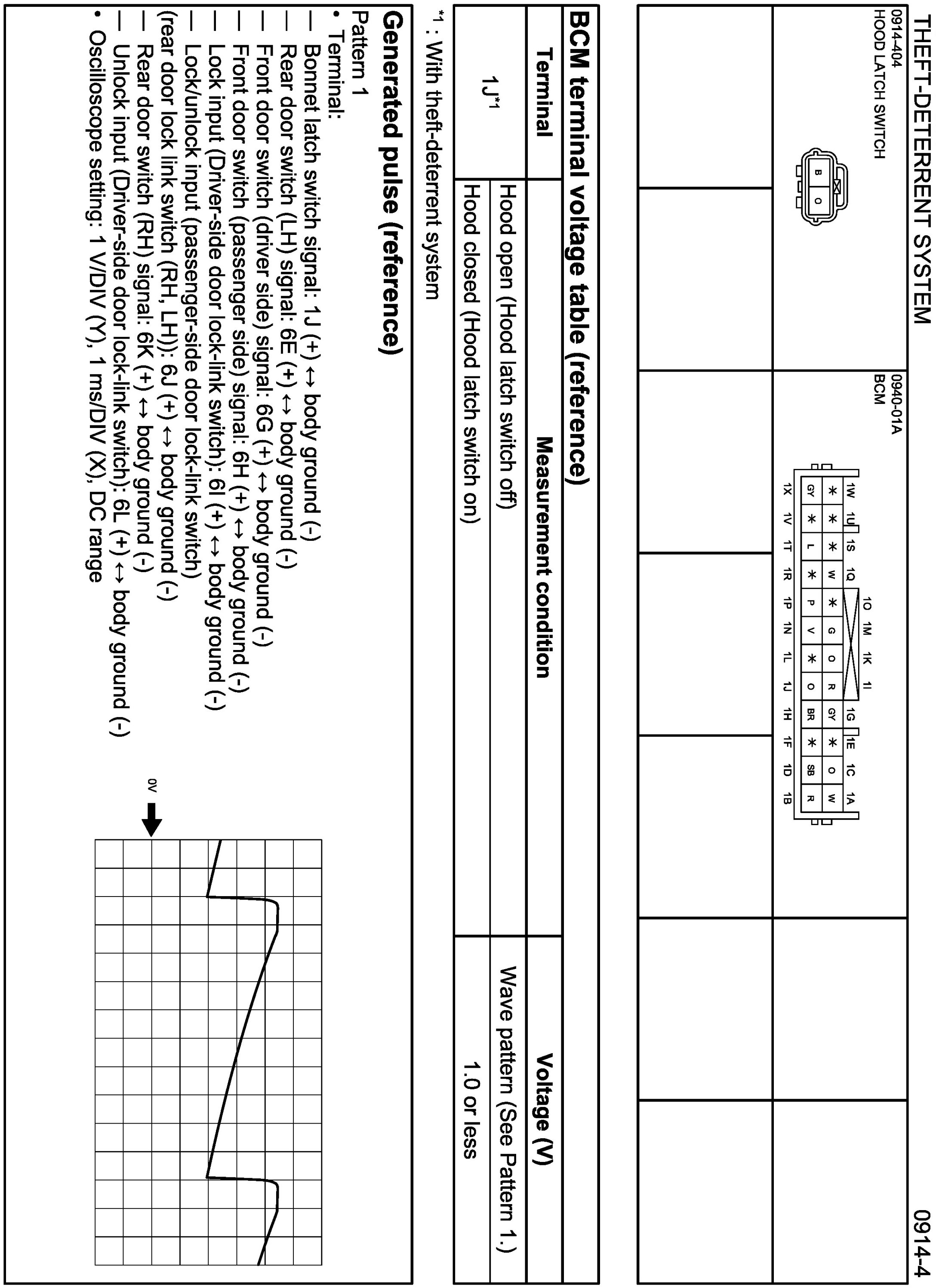

Connectors 0914-4:

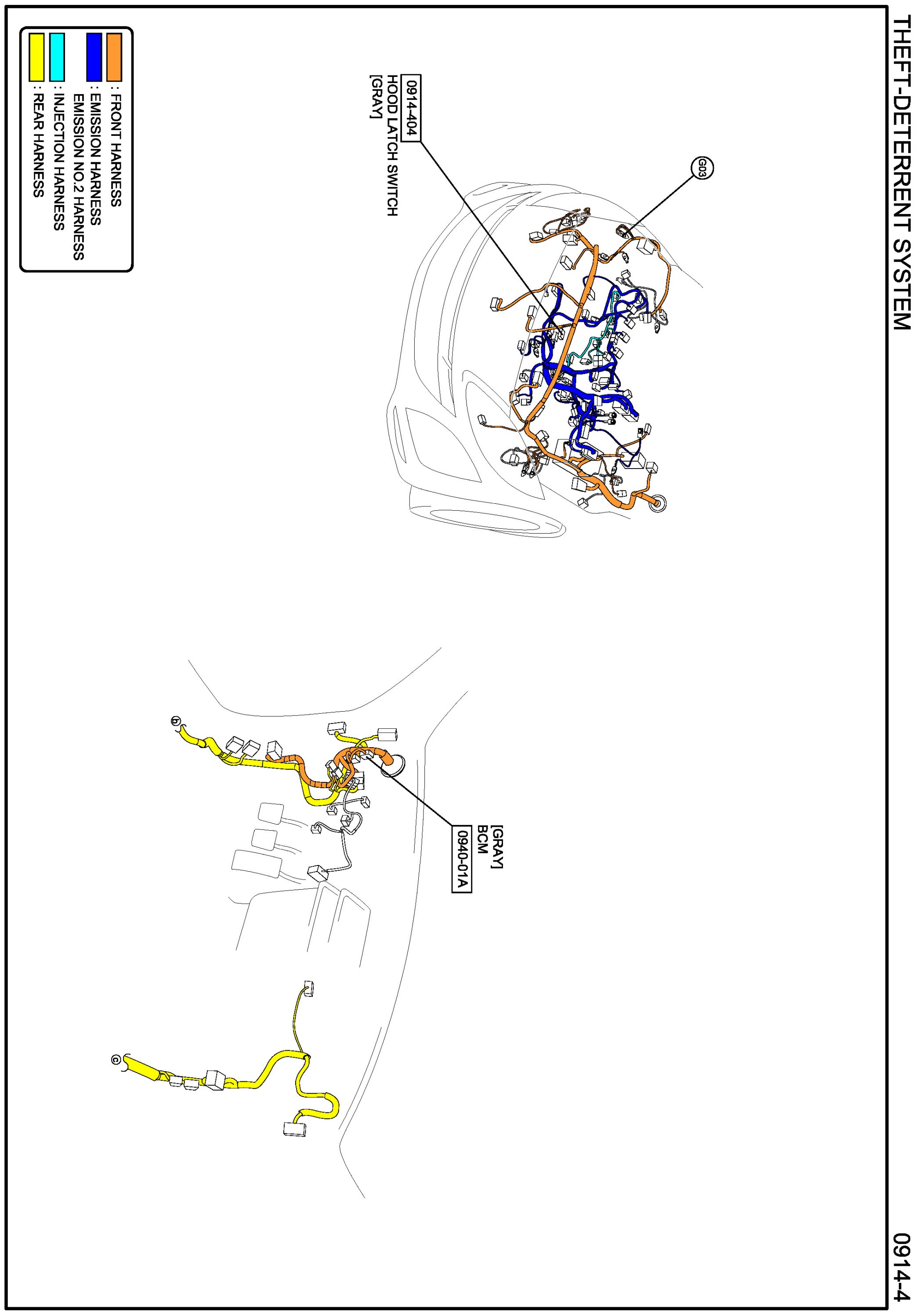

Routing View 0914-4:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
