Keyless Entry System Wiring Diagram - Keyless Entry System

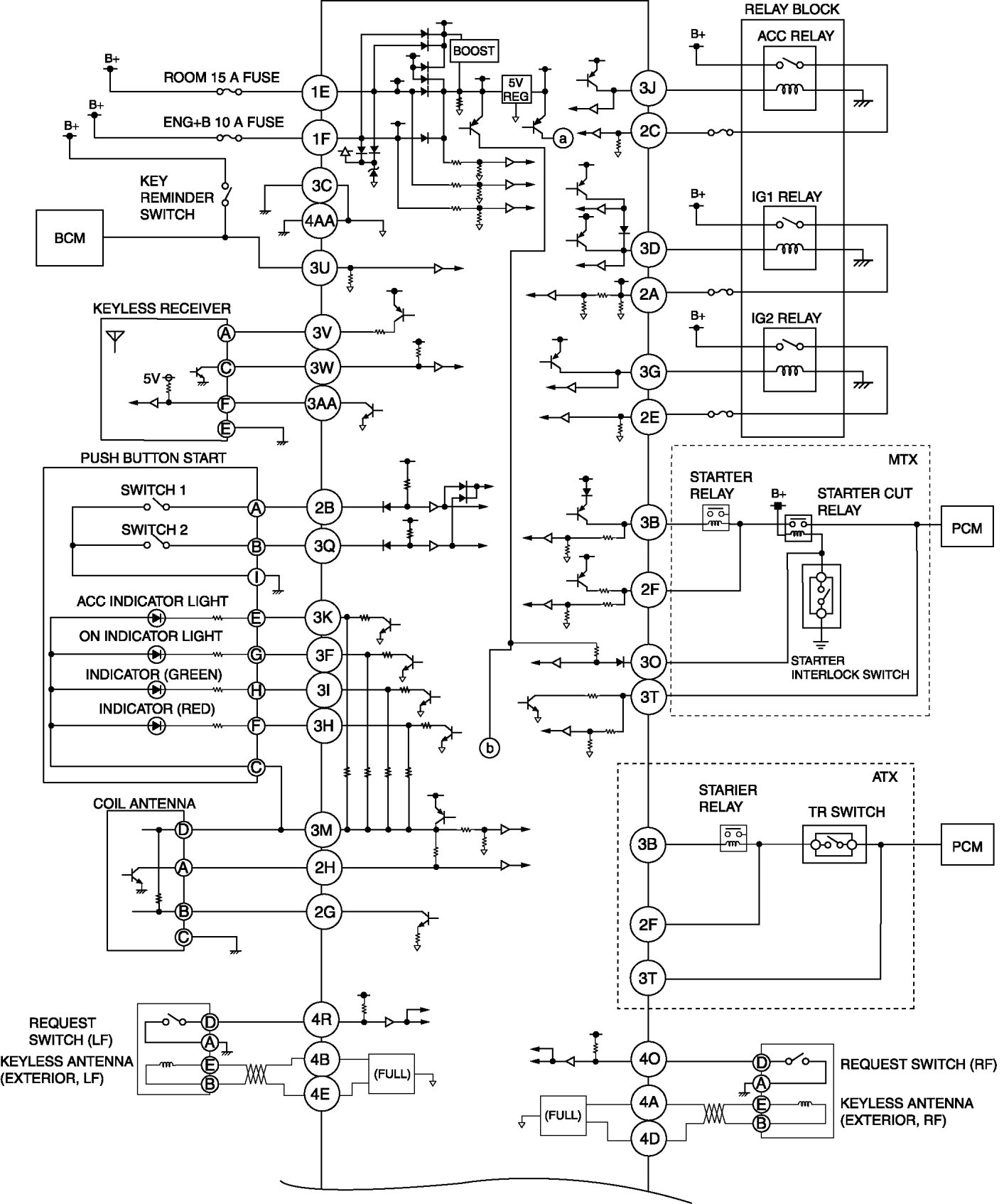

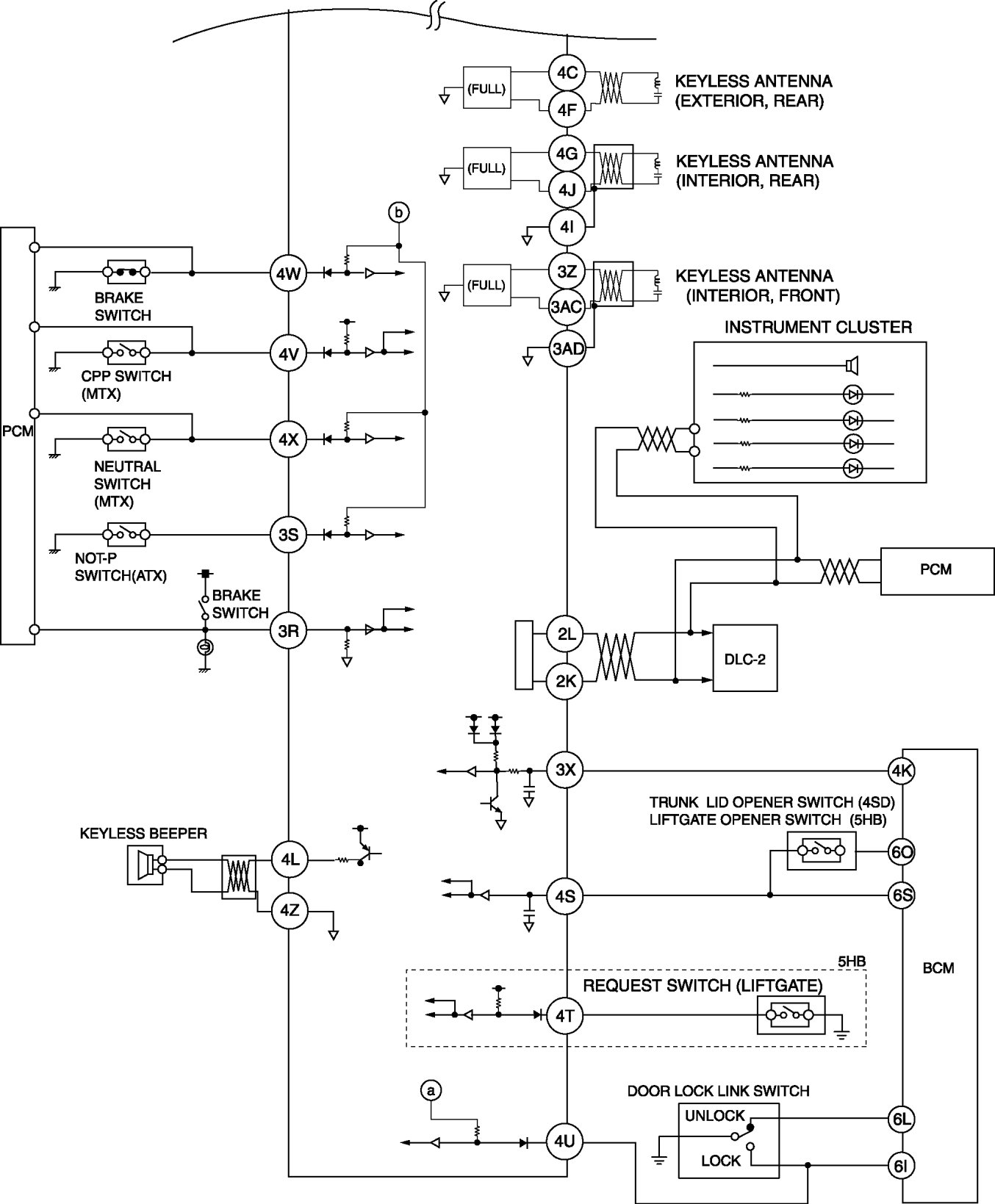

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
