Discharge Headlight Control Module Removal/Installation

DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- Incorrect servicing of the discharge headlight control module could result in electrical shock. Before servicing the discharge headlight control module, always refer to the "Discharge headlight service warnings." Service Precautions

1. Disconnect the negative battery cable.

2. Remove the front bumper. Front Bumper Removal/Installation

3. Remove the front combination light. Service and Repair

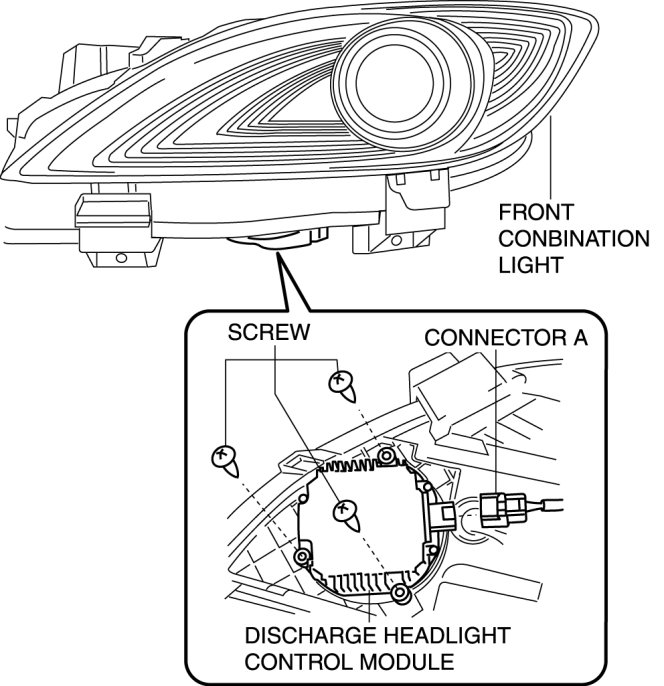

4. Remove the screws.






5. Disconnect the connector A.

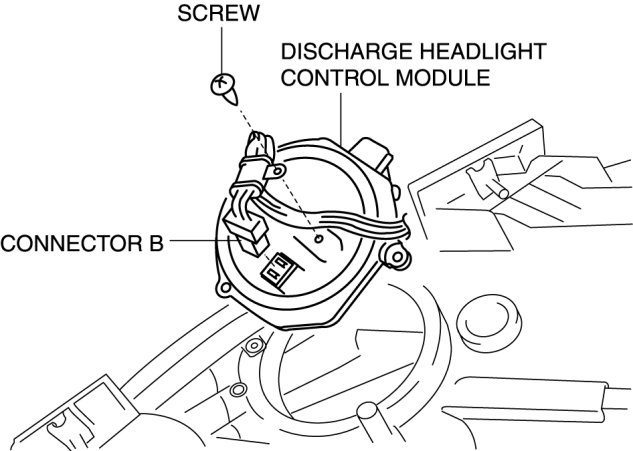

6. Remove the screw.






7. Disconnect the connector B.

8. Remove the discharge headlight control module.

9. Install in the reverse order of removal.
