Map Light Removal/Installation

MAP LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

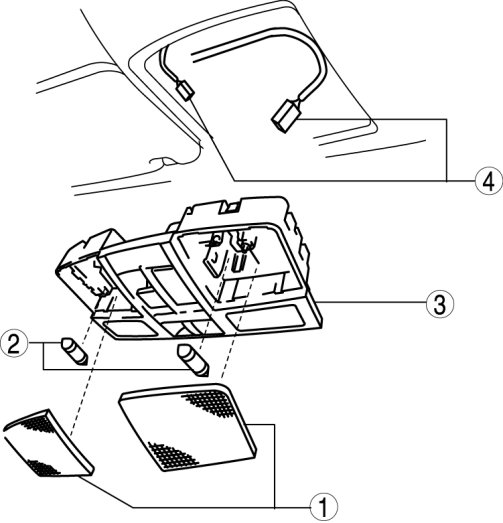

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

Lens Removal Note

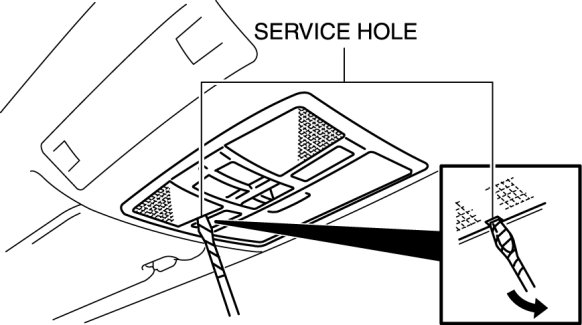

1. Insert a tape-wrapped fastener remover into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the lens.






Map Light Removal Note

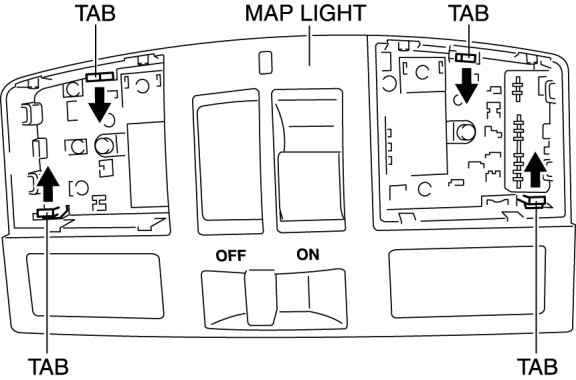

1. Release the tabs by pressing them in the direction of the arrows in the figure and remove the map light.
