Manual Transmission/Transaxle

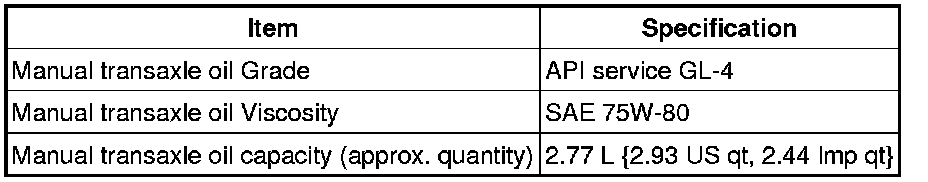

TRANSMISSION/TRANSAXLE TECHNICAL DATA

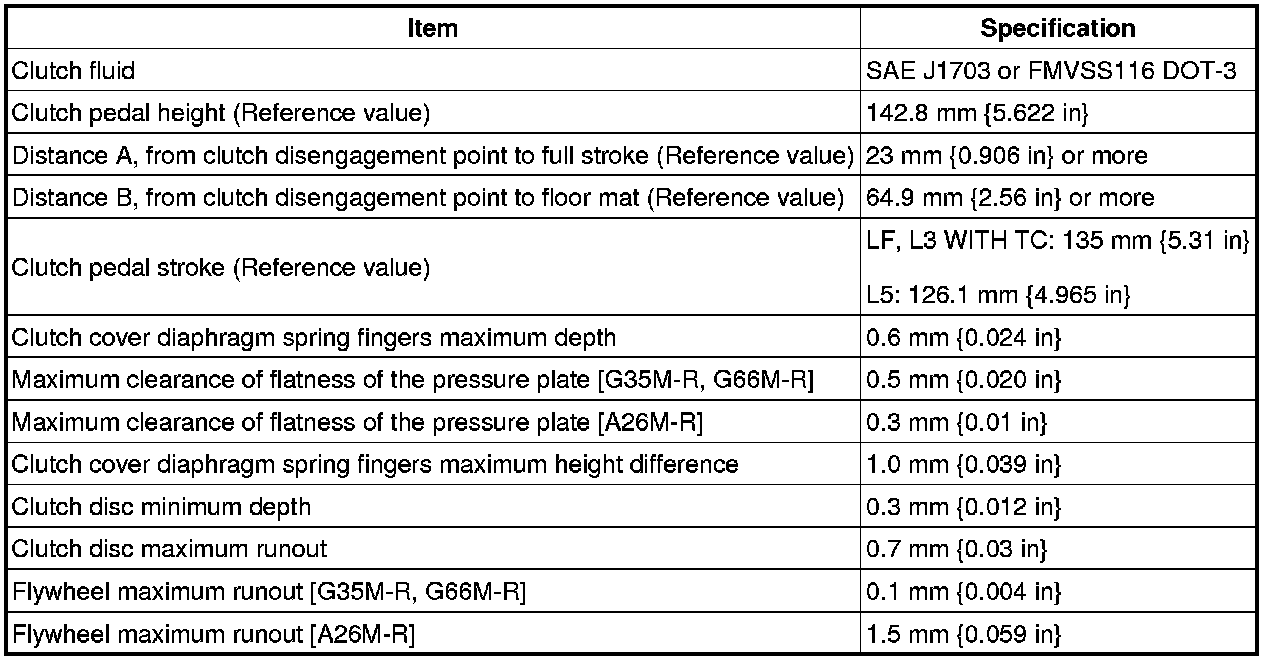

Clutch





Manual Transaxle [G35M-R]





Manual Transaxle [G66M-R]





Manual Transaxle [A26M-R]
