Pattern 2

Terminal: 2E (+) <==> body ground (-)
Oscilloscope setting: 5 V/DIV (Y), 200 μs/DIV (X), DC range

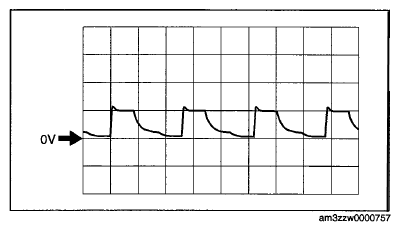

Fig 1: Screen Display - Generated Pulse Pattern 2
Courtesy of MAZDA MOTORS CORP.
