Intruder sensor signal
Terminal connected: 5N (+) - Body ground (-)
Oscilloscope setting: 5 V/DIV (Y): 5 s/DIV (X), DC range

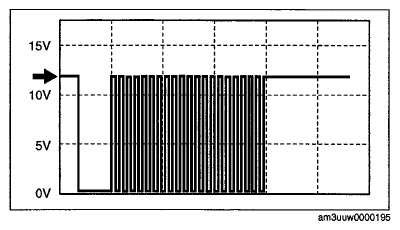

Fig 1: Screen Display - Intruder Sensor Signal Waveform
Courtesy of MAZDA MOTORS CORP.
