Control System Personalization Features Setting Procedure

NOTE:
  • Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the PERSONALIZATION FEATURES SETTING PROCEDURE.
  1. Connect the M-MDS to the DLC-2.
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    • When using the IDS (laptop PC)
      1. Select the "Module Programming".
  3. Then, select items from the screen menu in the following order.
    1. Select "Programmable Parameters".
    2. Select "Personality", "Interior lighting", "Washer/Wiper", "Security" or "Power Door Locks".
  4. Select an item name, and then select option.

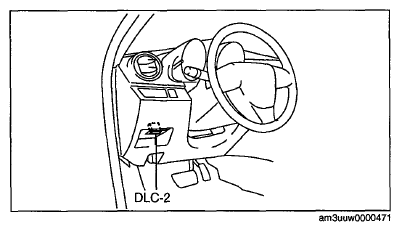

    Fig 1: Identifying DLC-2
    G06732682Courtesy of MAZDA MOTORS CORP.
ITEMS OF "PERSONALITY"

M-MDS display Function Initial setting Setting content Control unit
Smart turn The turn light system function can be set. Disabled Disabled / Enabled BCM
Auto relock timer (without AKE) Auto re-lock operation timing can be changed. 30sec 30sec / 60sec / 90sec / Disabled BCM
2 stage door unlocking (without AKE) 2-step unlocking system can be set. Enabled Disabled / Enabled BCM
Rear defroster off timer Rear defroster off timer operation timing can be changed. 15min 15min / 20min / 25min / 30min BCM
Answer feed back (hazard) Answer back hazard can be set to inoperable. Enabled Enabled / Disabled BCM
Answer feed back (horn) Answer back horn can be set to inoperable. Enabled Enabled / Disabled BCM
Room lamp control time (when no transmitter is in the room) The elapsed time between the doors closing and the interior light turning off can be adjusted. 15s 7.5s/15s/30s/60s BCM
Room lamp control time (when the transmitter is in the room) The elapsed time between the doors unlocking and the interior light turning off can be adjusted. 30s 7.5s/15s/30s/60s BCM
ITEMS OF "INTERIOR LIGHTING"

M-MDS display Function Initial setting Setting content Control unit
Auto room lamp (when IG-OFF) The automatic illumination function of the interior light after the ignition is switched off can be canceled. Enabled Enabled / Disabled BCM
Auto room lamp (when doors unlocked) The automatic illumination function of the interior light when the doors are unlocked can be canceled. Enabled Enabled / Disabled BCM
Room Lamp Battery Saver Timer The elapsed time for the interior light to automatically turn off when a door is ajar can be adjusted. 30min 30 min / 60min / 10min BCM
Room Lamp Battery Saver The automatic illumination function of the interior light to automatically turn off can be canceled. Enabled Enabled / Disabled BCM
Interactive illumination The welcome mode can be set to operable or inoperable. Enabled Enabled / Disabled BCM
ITEMS OF "WASHER/WIPER"

M-MDS display Function Initial setting Setting content Control unit
Front wiper interlocked to window washer switch The wiper action in conjunction with the windshield washer operation can be canceled. Enabled Enabled / Disabled BCM
Rear wiper interlocked to window washer switch The wiper action in conjunction with the rear washer operation can be canceled. Enabled Enabled / Disabled BCM
ITEMS OF "SECURITY"

M-MDS display Function Initial setting Setting content Control unit
Burglar alarm start up method Theft-deterrent system start up method can be changed. Transmitter and key Transmitter and key / Transmitter BCM
ITEMS OF "POWER DOOR LOCKS"

M-MDS display Function Initial setting Setting content Control unit
Auto door lock control Auto lock/unlock function can be changed. Type 3 Type 1(1)/Type 2(2)/ Type 3(3) / Type 4 (for AT only)(4) / Type 5 (for AT only)(5)/Type 6 (for AT only)(6) / Type 7 (for AT only)(7)/Type 8 (for AT only)(8)/Type 9(9) BCM
(1) Disabled.
(2) Locking all doors when vehicle starts.
(3) Locking all doors when vehicle starts. Unlocking all doors when ignition off.
(4) Locking all doors when gear selector is changed (except to P range).
(5) Locking all doors when gear selector is changed (except to P range). Unlocking all doors when gear selector is changed to P range.
(6) Locking all doors when gear selector is changed (except to P range). Unlocking driver-side door when gear selector is changed to P range.
(7) Locking all doors when gear selector is changed (except to P range). Unlocking all doors when ignition off.
(8) Locking all doors when gear selector is changed (except to P range). Unlocking driver-side door when ignition off.
(9) Locking all doors when vehicle start. Unlocking driver-side door when ignition off.
