Resistance Inspection

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  2. Disconnect the negative battery cable.
  3. Disconnect MAP/boost air temperature sensor.
  4. Measure the resistance between the MAP/boost air temperature sensor terminals A and B using a tester.
    SPECIFICATION

    Ambient temperature (°C {°F}) Resistance (kilohm)
    20 {68} 2.4-2.7
    60{140} 0.59-0.64

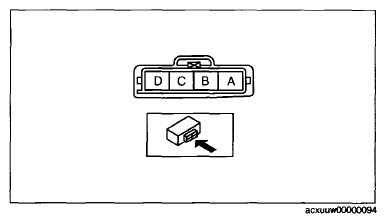

    5. Fig 1: Identifying Boost Air Temperature Sensor Connector Terminals
    G07868472Courtesy of MAZDA MOTORS CORP.
