Neutral Switch Inspection

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  2. Disconnect the negative battery cable.
  3. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION ).
  4. Inspect for continuity between the neutral switch terminals using an ohmmeter.
    SPECIFICATION

    Measured condition Continuity
    Rod pushed Continuity detected
    Except above No continuity

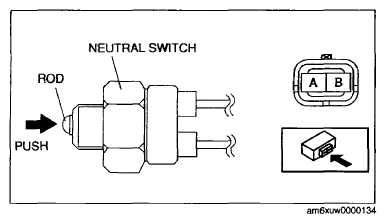

    Fig 1: Identifying Neutral Switch Connector Terminals
    G07868460Courtesy of MAZDA MOTORS CORP.
