Inspection Using An Oscilloscope (Reference)

APP sensor (No. 2) signal

Accelerator pedal released

Accelerator pedal depressed

PCM terminals

• 1AC (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 2: APP Sensor (No. 2) Signal Waveform (Depressed)

  Courtesy of MAZDA MOTORS CORP.

Fan control module signal

PCM terminals

• 1AE (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

Idle after warm up

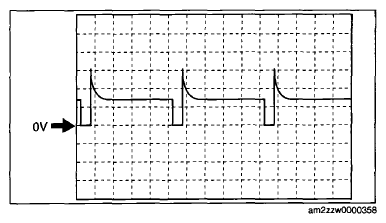

Generator field coil control signal

PCM terminals

• 1AW (+)-body ground (-)

Oscilloscope setting

• 0.5 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

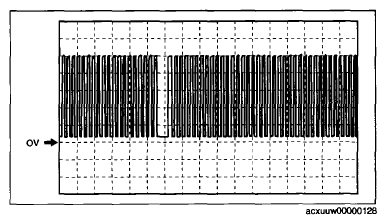

  Fig 4: Generator Field Coil Control Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

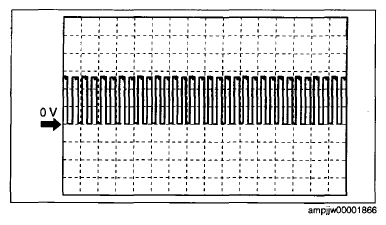

Generator output voltage signal

PCM terminals

• 1AX (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

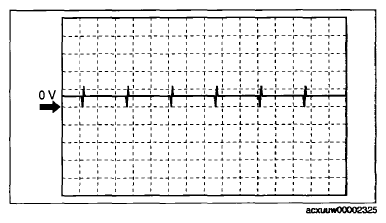

  Fig 5: Generator Output Voltage Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

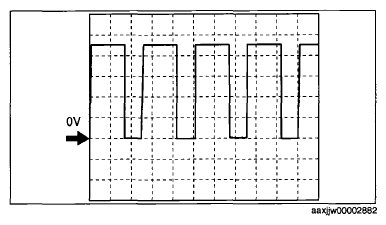

A/F sensor heater control signal

PCM terminals

• 2C (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 200 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

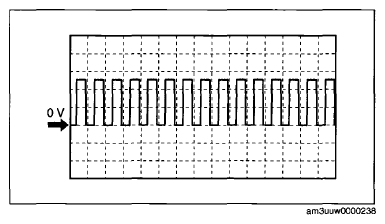

  Fig 6: A/F Sensor Heater Control Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

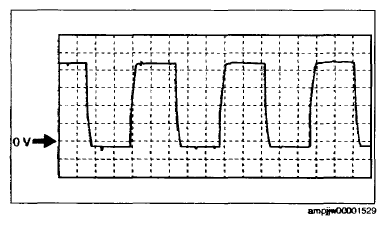

CMP sensor signal

PCM terminals

• 2S (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 100 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

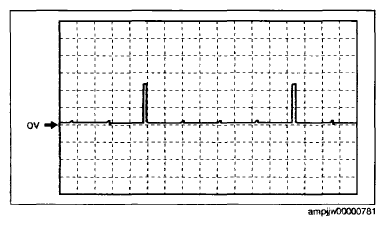

  Fig 7: CMP Sensor Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

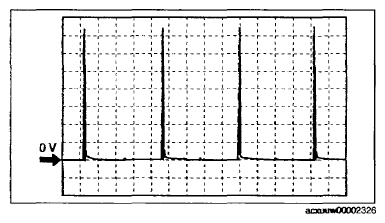

CKP sensor signal

PCM terminals

• 2W (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

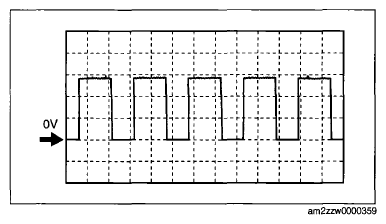

  Fig 8: CKP Sensor Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

Wastegate control solenoid valve signal

PCM terminals

• 2AA (+)-body ground (-)

Oscilloscope setting

• 20 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Switch the ignition to ON
  Fig 9: Wastegate Control Solenoid Valve Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

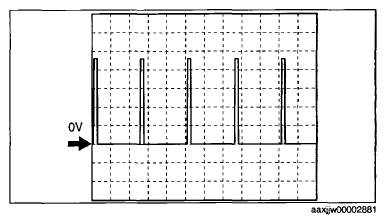

Purge control signal

PCM terminals

• 2AB (+)-body ground (-)

Oscilloscope setting

• 10 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Racing
  Fig 10: Purge Control Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

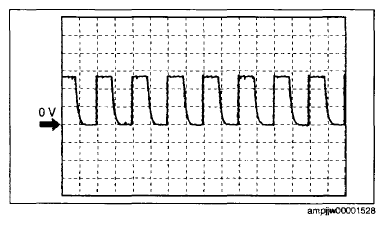

OCV signal

PCM terminals

• 2AF (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Racing
  Fig 11: OCV Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

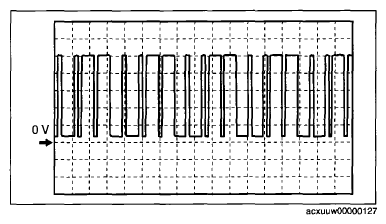

IGT1, IGT2, IGT3, IGT4 control signals

PCM terminals

• IGT1 (No. 1): 2BA (+)-body ground (-)
• IGT2 (No. 2): 2AW (+)-body ground (-)
• IGT3 (No. 3): 2AX (+)-body ground (-)
• IGT4 (No. 4): 2AT (+)-body ground (-)

Oscilloscope setting

• 2 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 12: IGT1, IGT2, IGT3, IGT4 Control Signals Waveform

  Courtesy of MAZDA MOTORS CORP.

Fuel injection control (-)

PCM terminals

• Fuel injection No. 1: 2BB (+)-body ground (-)
• Fuel injection No. 2: 2BC (+)-body ground (-)
• Fuel injection No. 3: 2BD (+)-body ground (-)
• Fuel injection No. 4: 2AZ (+)-body ground (-)
  Fig 13: Fuel Injection Control (-) Signal Waveform

  Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

• 10 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up

Fuel injection control (+)

PCM terminals

• Fuel injection No. 1, No. 4: 2BG (+)-body ground (-)
• Fuel injection No. 2, No. 3: 2BH (+)-body ground (-)

Oscilloscope setting

• 20 V/DIV (Y), 400 μs/DIV (X), DC range

Vehicle condition

• Idle after warm up
  Fig 14: Fuel Injection Control (+) Signal Waveform

  Courtesy of MAZDA MOTORS CORP.
