Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.

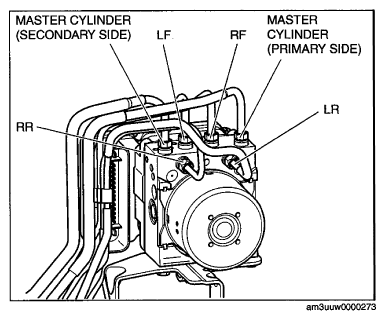

    Fig 1: Identifying Brake Pipe And Master Cylinder (Secondary/Primary Sides)
    G06733268Courtesy of MAZDA MOTORS CORP.
