Start / Stop Switch: Service and Repair

PUSH BUTTON START REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Decoration panel Decoration Panel Removal/Installation

c. Shift knob (MTX) Service and Repair

d. Shift panel Shift Panel Removal/Installation

e. Center panel lower Center Panel Lower Removal/Installation

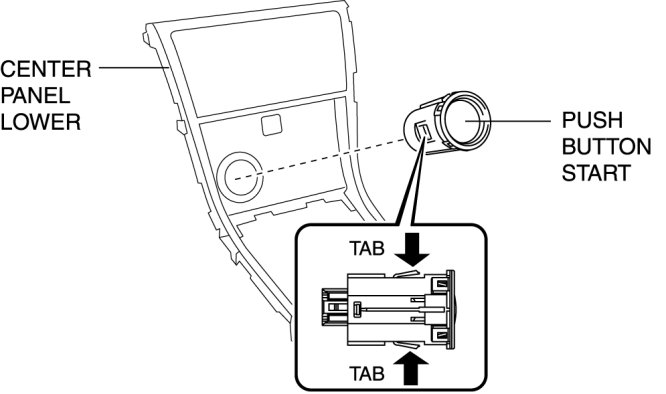

3. Release the tabs and remove the push button start from the center panel lower.






4. Install in the reverse order of removal.
