Rain Sensor: Service and Repair

RAIN SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

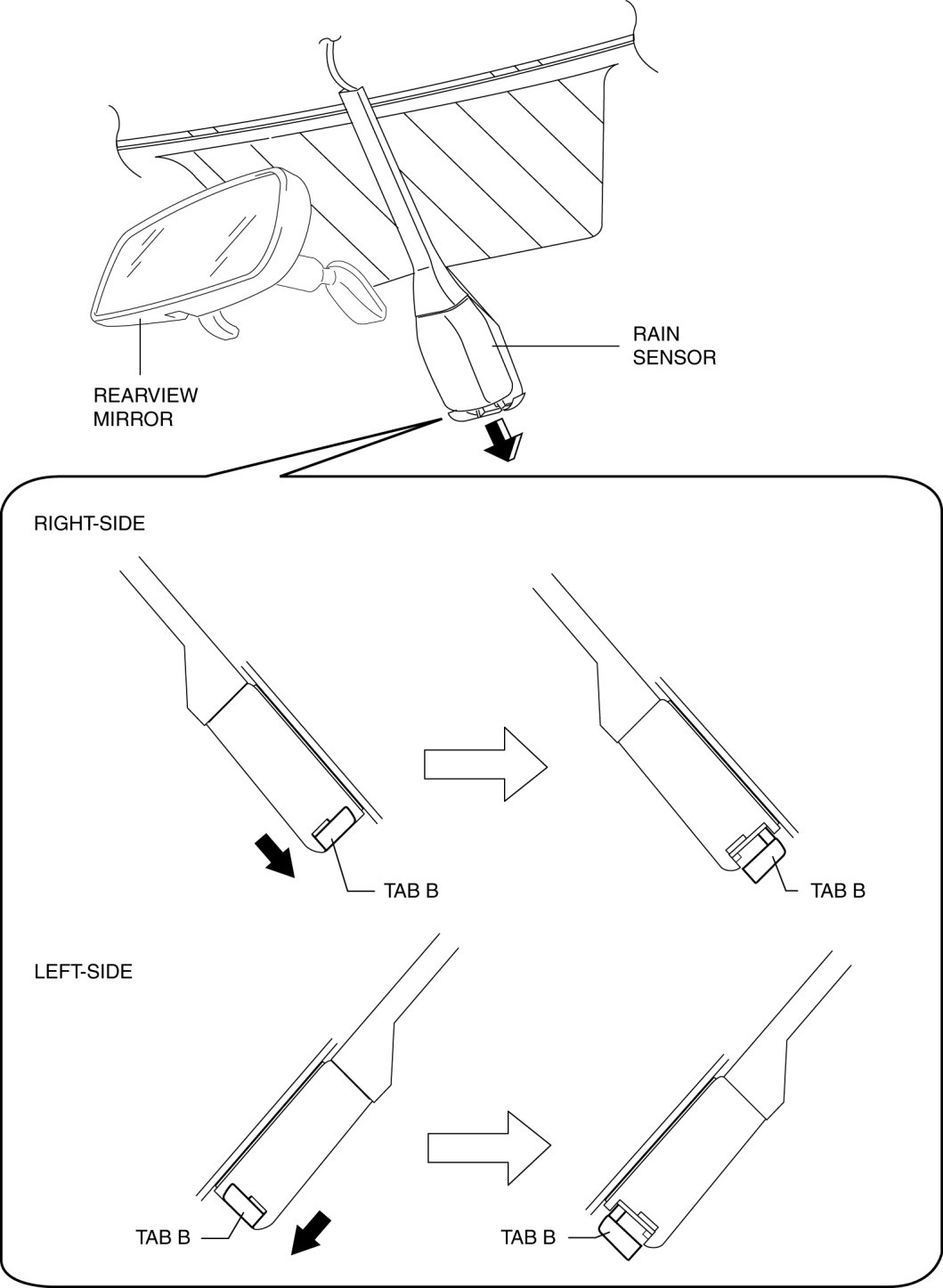

2. Slide the tab B in the direction of the arrow and remove the rain sensor while supporting it with the hand.

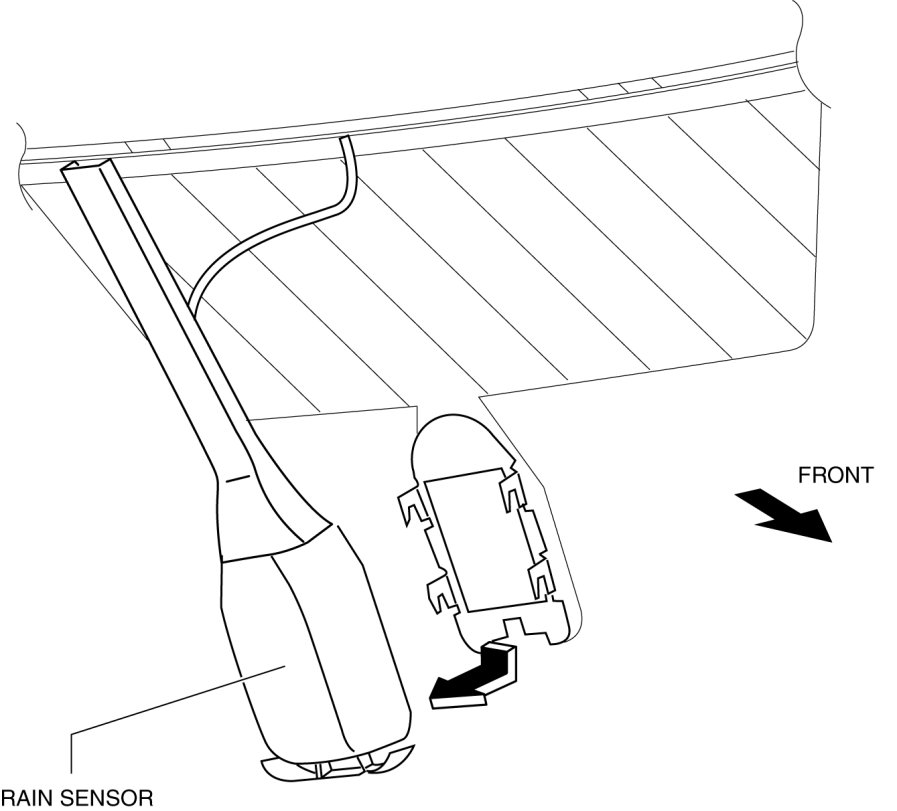

3. Remove the rain sensor in the direction of the arrow shown in the figure.

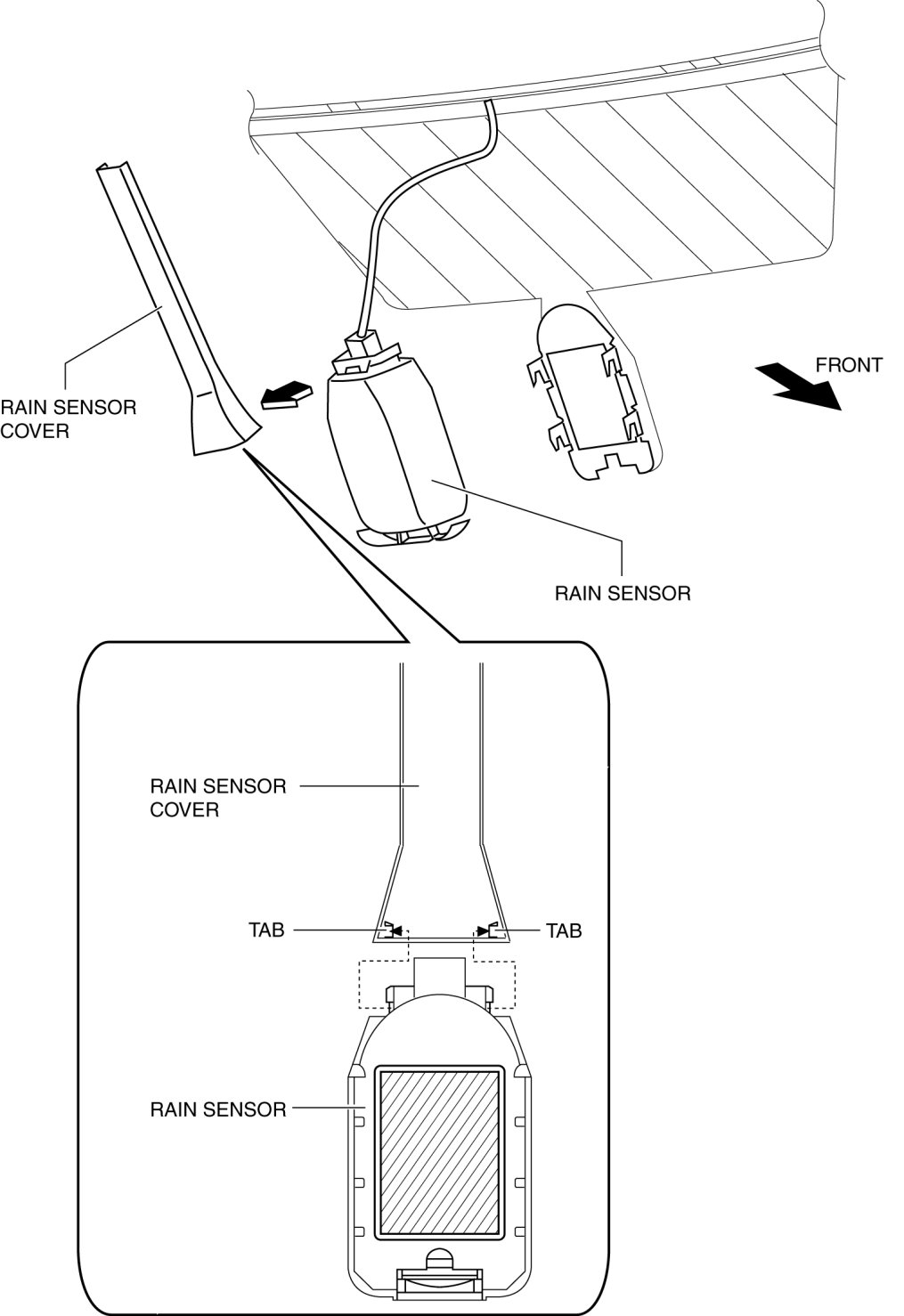

4. Remove the rain sensor cover in the direction shown in the figure.

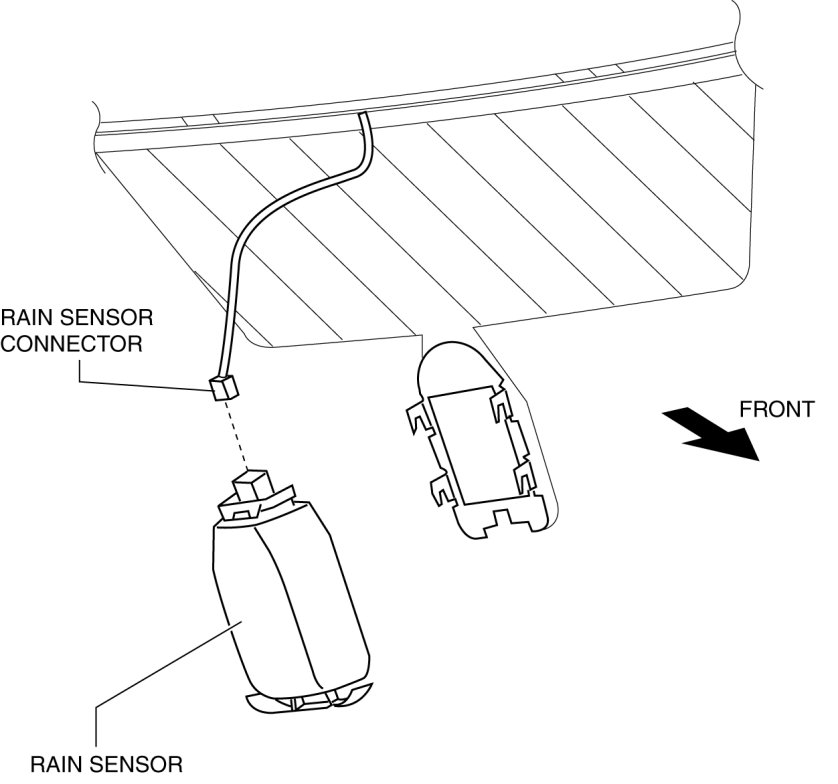

5. Disconnect the rain sensor connector.






6. Install in the reverse order of removal.
