Electronic Throttle Actuator: Testing and Inspection

THROTTLE BODY INSPECTION [MZI 3.7 V6]

Resistance Inspection

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the engine cover. Service and Repair

3. Disconnect the throttle body connector.

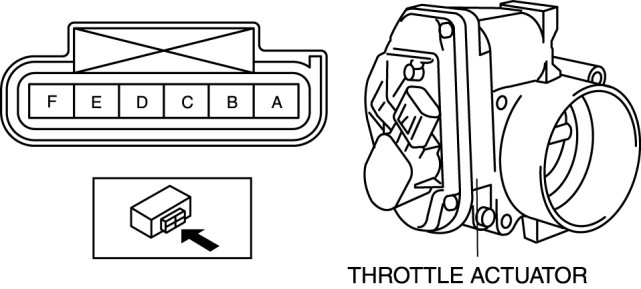

4. Measure the resistance between throttle body terminals A and B.

Throttle actuator resistance
- 1-900 ohms [20°C {68 °F}]





- If not as specified, replace the throttle body. Service and Repair
