DTC P0327:00: Notes
DTC DETECTING CONDITION REFERENCE CHART
| DTC P0327:00 |
KS circuit low input |
| DETECTION CONDITION |
- The PCM monitors input signal from the KS when the engine is running. If the input voltage is below 0.2 V
for 5 s
, the PCM determines that the KS circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|

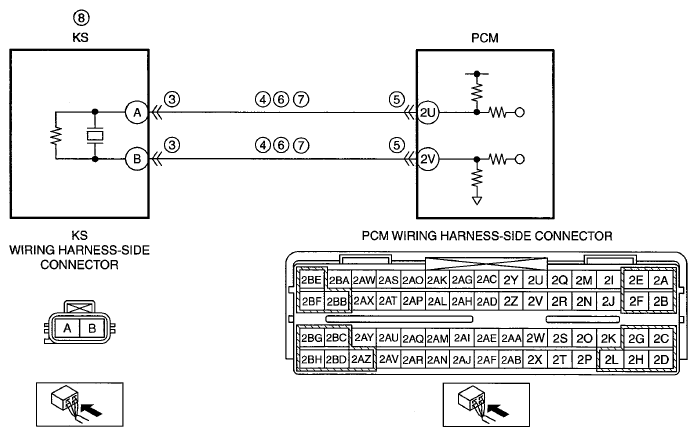

| POSSIBLE CAUSE |
- KS connector or terminal malfunction
- Short to ground in wiring harness between KS terminal A and PCM terminal 2U
- Short to ground in wiring harness between KS terminal B and PCM terminal 2V
- PCM connector or terminal malfunction
- Short circuit in KS circuits each other
- Open circuit in wiring harness between KS terminal A and PCM terminal 2U
- Open circuit in wiring harness between KS terminal B and PCM terminal 2V
- KS malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
