DTC P0328:00: Notes
DTC DETECTING CONDITION REFERENCE CHART
| DTC P0328:00 |
KS circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input signal from the KS when the engine is running. If the input voltage is above 4.8 V for 5 s
, the PCM determines that KS circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction conditions during first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- KS connector or terminal malfunction
- PCM connector or terminal malfunction

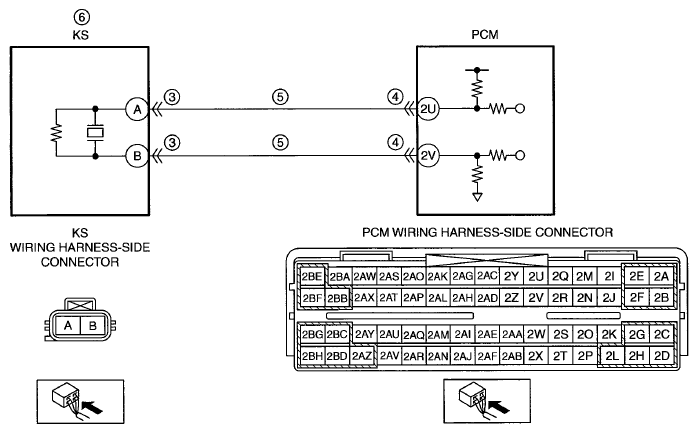

- Short to power supply in wiring harness between KS terminal A and PCM terminal 2U
- Short to power supply in wiring harness between KS terminal B and PCM terminal 2V
- KS malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
