Front Buckle Removal/Installation

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the front buckle connector.
  5. Remove the bolt.
  6. Remove the front buckle.
  7. install in the reverse order of removal.

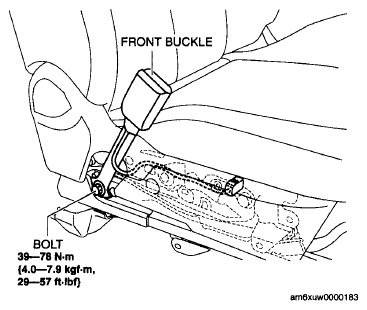

Fig 1: Front Buckle And Bolt With Torque Specification
G06206103Courtesy of MAZDA MOTORS CORP.
