Steering Shaft Component installation Mote

CAUTION:
  • Do not unlock the adjusting lever until after the steering shaft installation is completed to prevent damage to the steering shaft.
  1. Verify that the adjusting lever is in the LOCK position.
  2. Temporarily install the steering shaft component to the dashboard member using nuts A and B.
  3. Tighten the nuts in the order of nut A and nut B.

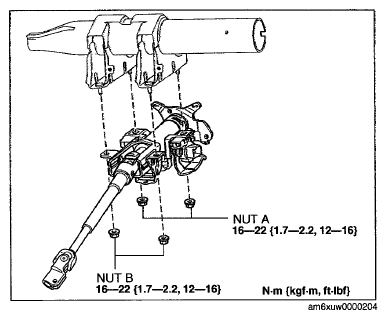

Fig 1: Steering Shaft Component Nuts
G07626536Courtesy of MAZDA MOTORS CORP.
