Joint Bolt (Intermediate Shaft) Removal Note

  1. Place alignment marks on the intermediate shaft joint as shown in the illustration.
    NOTE:
    • Do not detach the intermediate shaft joint while servicing. If the intermediate shaft joint is mistakenly detached while servicing, align the alignment marks placed during the joint bolt removal and connect the intermediate shaft.

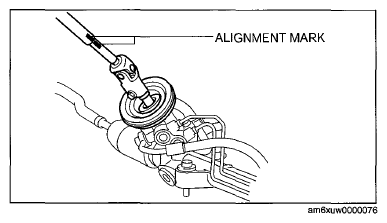

    Fig 1: Alignment Marks On Intermediate Shaft Joint
    G07626517Courtesy of MAZDA MOTORS CORP.
  2. Place alignment marks on the intermediate shaft joint, and the steering gear for proper installation.
  3. Remove the joint bolt and detach the intermediate shaft from the steering gear.

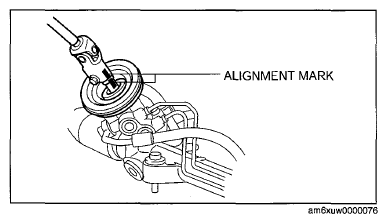

Fig 2: Alignment Marks On Intermediate Shaft Joint And Steering Gear
G07626518Courtesy of MAZDA MOTORS CORP.
