Steering Lock Mounting Bolt, Steering Lock Component Removal Mote

1. Make a groove in the heads of the steering lock mounting: bolls using a chisel and hammer.
2. Remove the bolt using a flathead screwdriver, then remove the steering Jock component from the steering shaft.

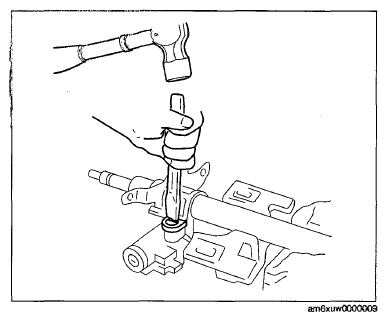

Fig 1: Removing Steering Lock Mounting Bolt

Courtesy of MAZDA MOTORS CORP.
