DTC P0223:00: Notes
DTC DETECTING CONDITION REFERENCE CHART
| DTC P0223:00 |
TP sensor No. 2 circuit high input |
| DETECTION CONDITION |
- If the PCM detects the TP sensor No. 2 voltage is to be above 4.85 V
after switch the ignition to ON, the PCM determines that the TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Throttle body connector or terminal malfunction
- PCM connector or terminal malfunction

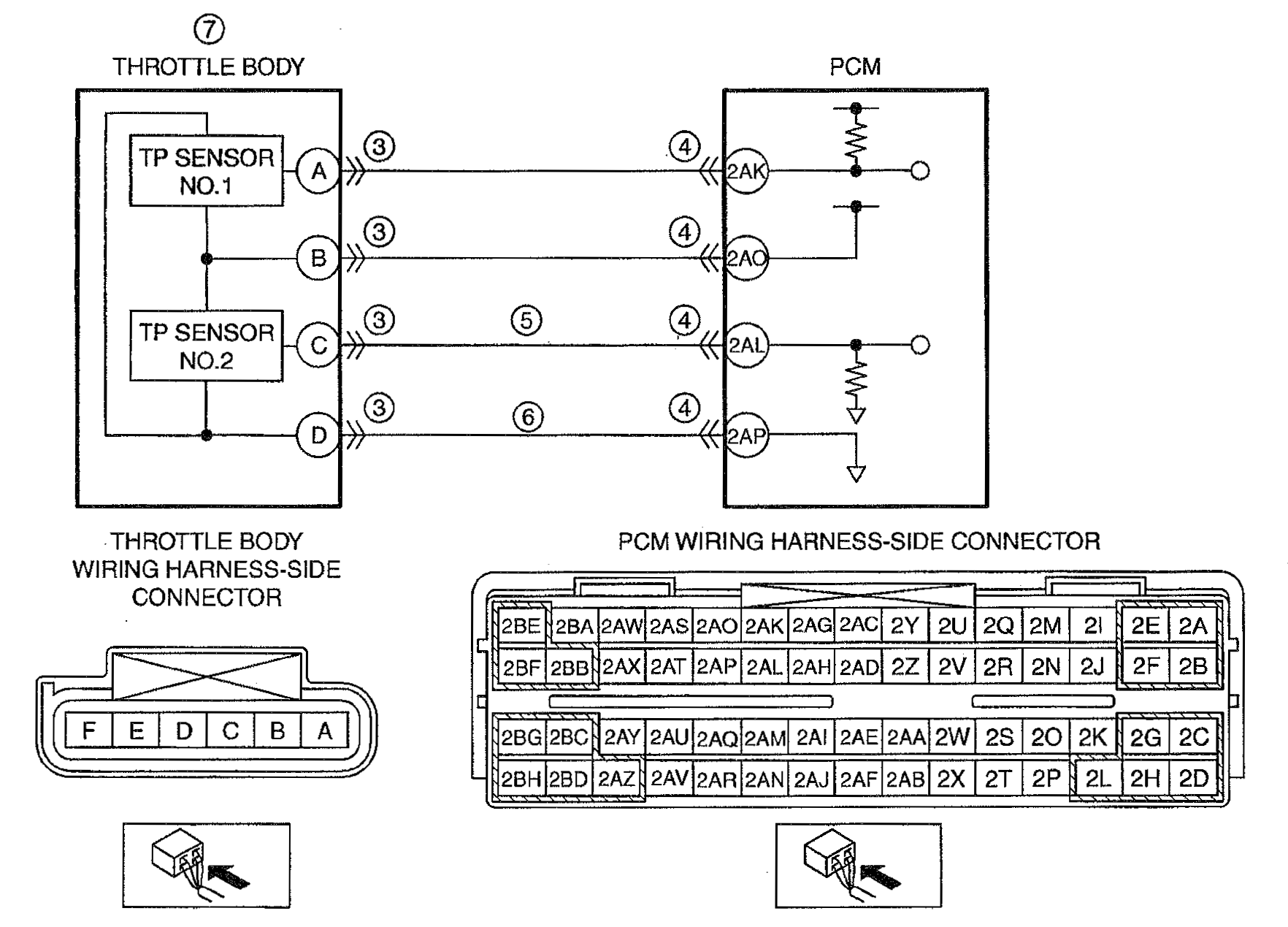

- Short to power supply in wiring harness between throttle body terminal C and PCM terminal 2AL
- Open circuit in wiring harness between throttle body terminal D and PCM terminal 2AP
- TP sensor No. 2 malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
