Front Power Window Regulator Removal/Installation

To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in} .
Disconnect the negative battery cable.
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
5. Front power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

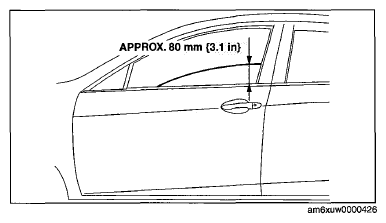

Fig 1: Distance From Top Of Front Door Glass To Upper Part Of Front Beltline Molding Is Approx. 80 mm (3.1 in)
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.
Insert a hand through the front door speaker installation hole and rotate the drum housing in the direction of the arrow shown in the illustration to detach the tabs from the front door module panel.

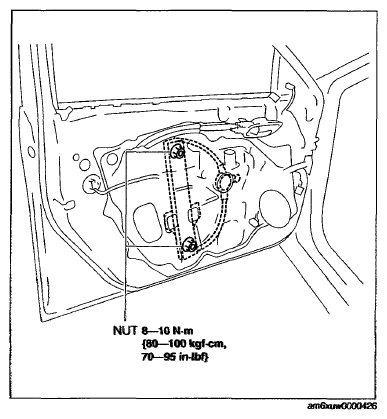

Fig 2: Front Power Window Regulator Nuts Tightening Torque
Courtesy of MAZDA MOTORS CORP.

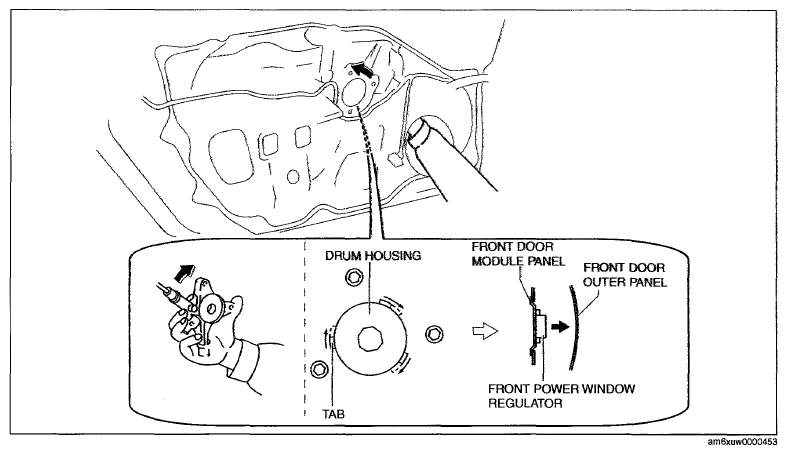

Fig 3: Rotating Drum Housing In Direction Of Arrow
Courtesy of MAZDA MOTORS CORP.
Remove the front power window regulator from the speaker installation hole.
Install in the reverse order of removal.
CAUTION:
- When installing, do not allow the cable to come out from the drum housing.

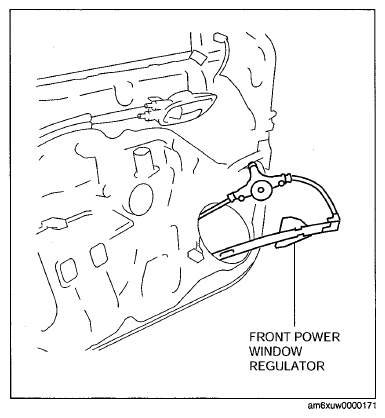

Fig 4: Removing Front Power Window Regulator From Speaker Installation Hole
Courtesy of MAZDA MOTORS CORP.
