Keyless Entry System

KEYLESS RECEIVER INSPECTION [KEYLESS ENTRY SYSTEM]

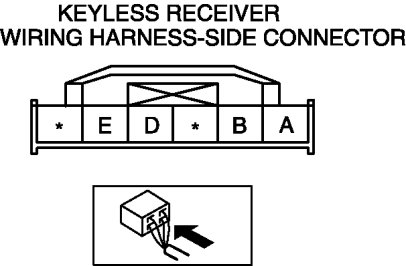

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).

- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.

2. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, perform symptom troubleshooting.

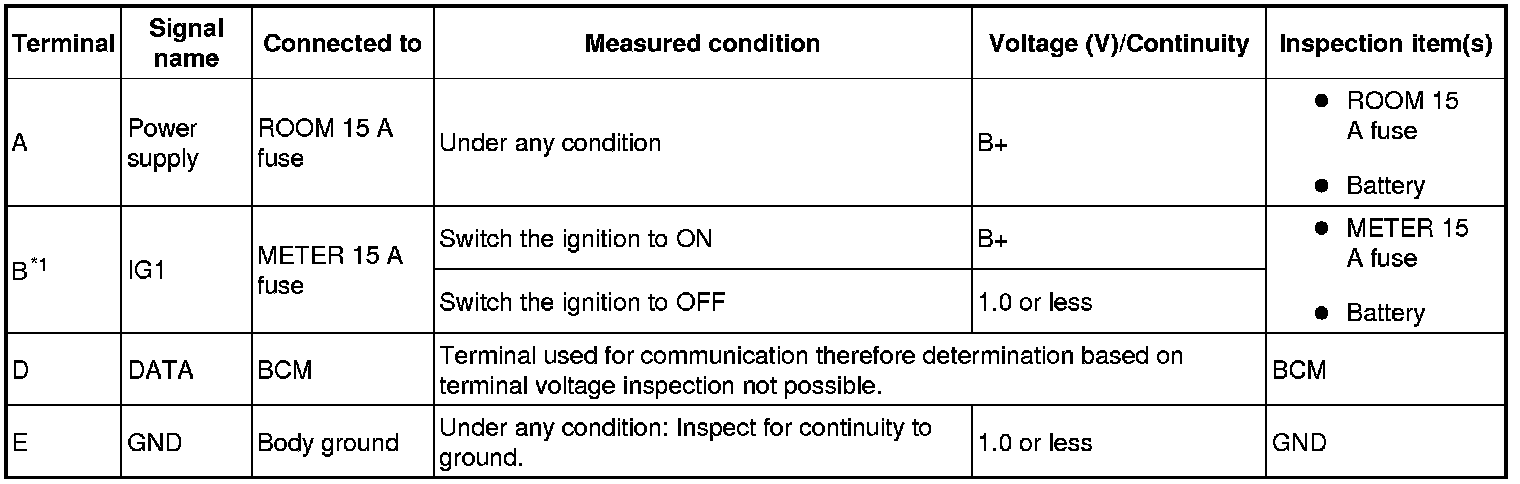

Terminal Voltage Table (Reference)









*1
With TPMS
