Knock Sensor: Service and Repair

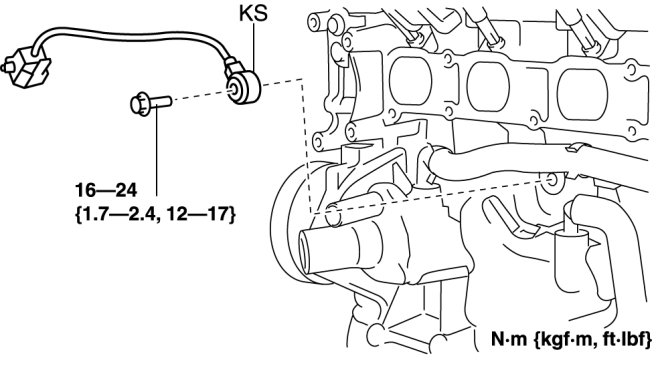

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [L5]

1. Disconnect the negative battery cable.

2. Remove the plug hole plate. Service and Repair

3. Remove the intake manifold. Service and Repair

4. Disconnect the KS connector.

5. Remove the KS.






6. Install in the reverse order of removal.
