Rear Abs Wheel-Speed Sensor Removal/Installation [AWD]

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table in the illustration.
  3. Install in the reverse order of removal.

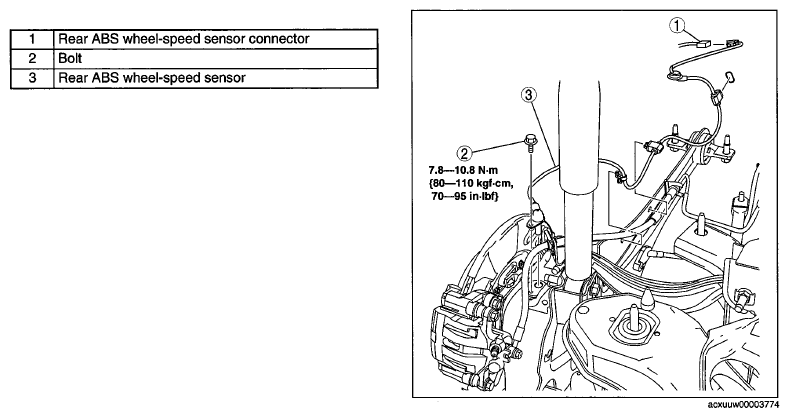

    Fig 1: Locating Rear ABS Wheel-Speed Sensor, Connector And Bolts With Torque Specifications (AWD)
    G06725275Courtesy of MAZDA MOTORS CORP.
