Circuit Open/Short Inspection: Notes

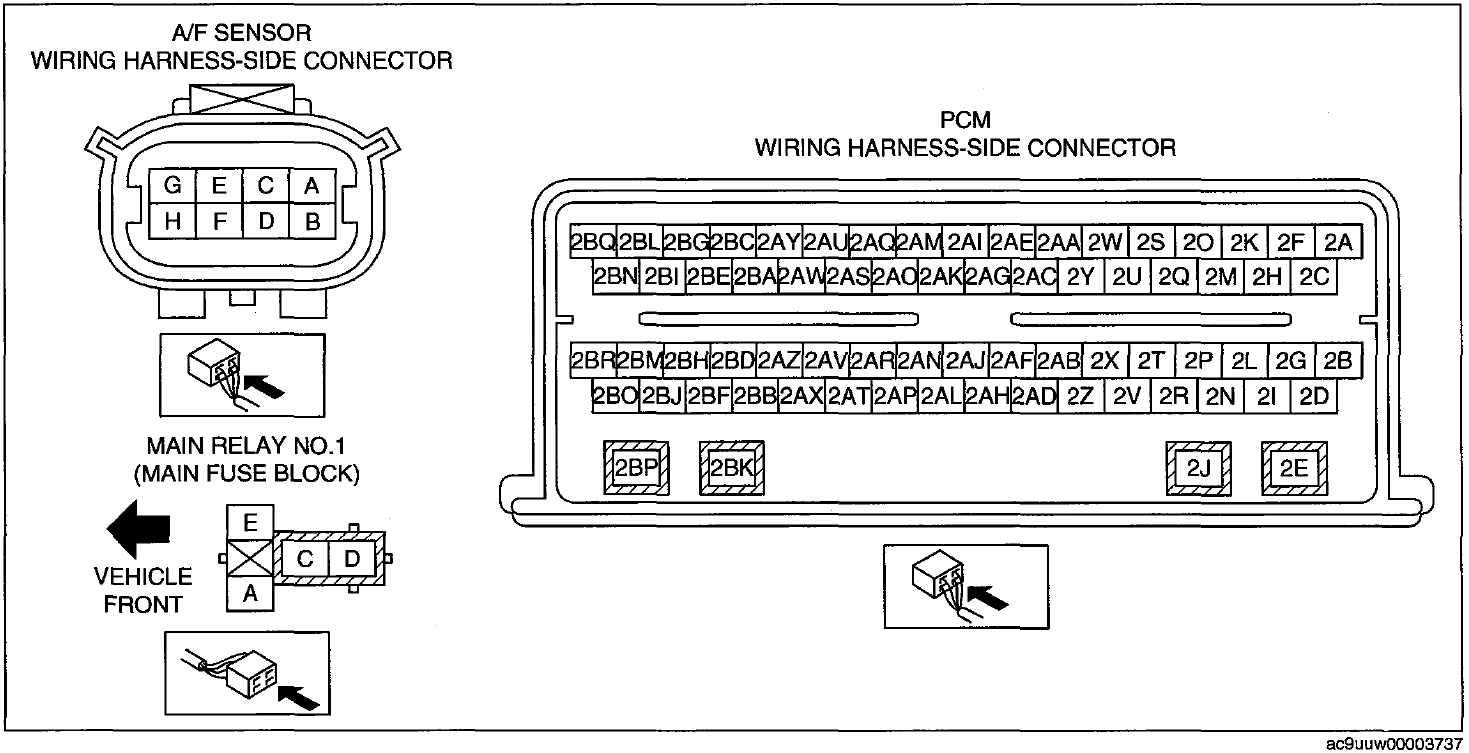

Fig 1: Identifying A/F Sensor Connector Terminals
G00512267Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)
  2. Disconnect the A/F sensor connector.
  3. Disconnect the PCM
  4. Inspect the following wiring harness for open or short. (Continuity inspection)
