Circuit Open/Short Inspection: Notes

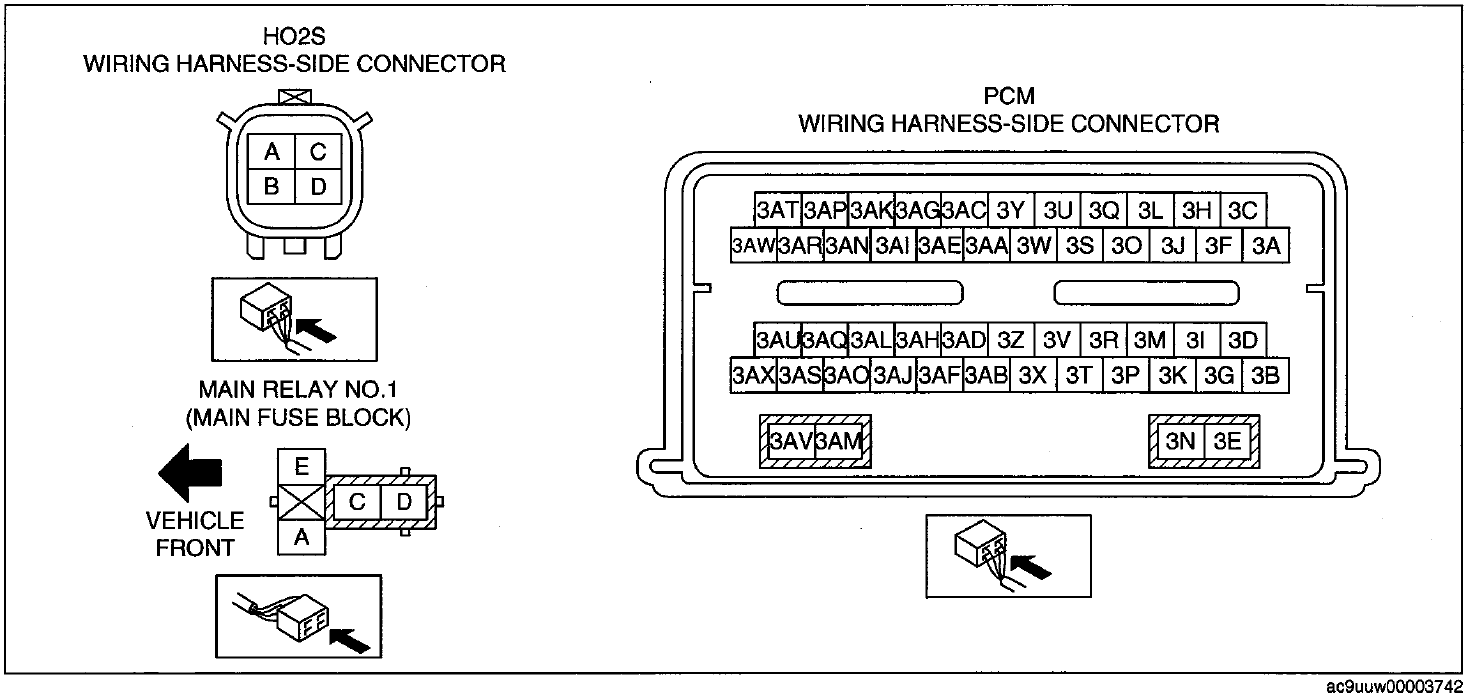

Fig 1: Identifying HO2S Sensor Connector Terminals
G00512272Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)
  2. Disconnect the HO2S connector
  3. Disconnect the PCM connector.
  4. Inspect the following wiring harness for open or short (continuity check).
