Circuit Open/Short Inspection: Notes

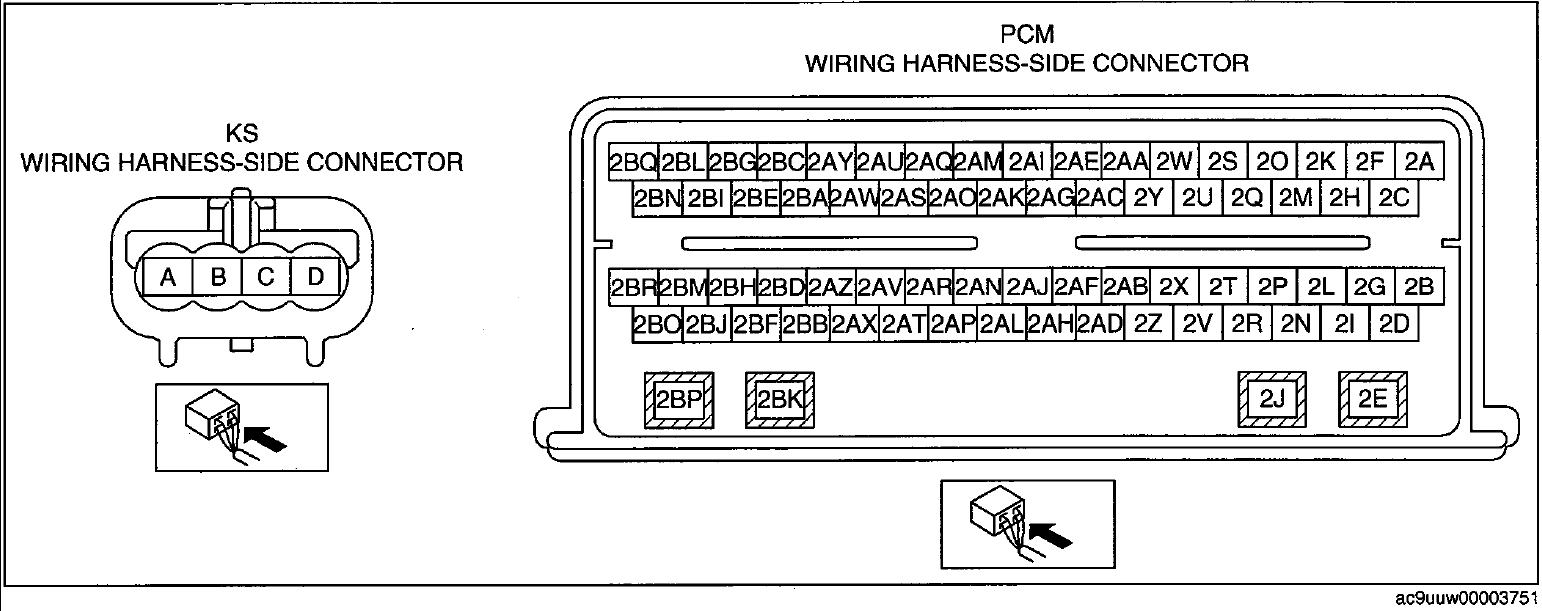

Fig 1: Identifying Knock Sensor Connector Terminals
G00512276Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)
  2. Disconnect the KS connector. (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
  3. Disconnect the PCM connector.
  4. Inspect the following wiring harnesses for open or short. (Continuity inspection)
