Circuit Open/Short Inspection: Notes

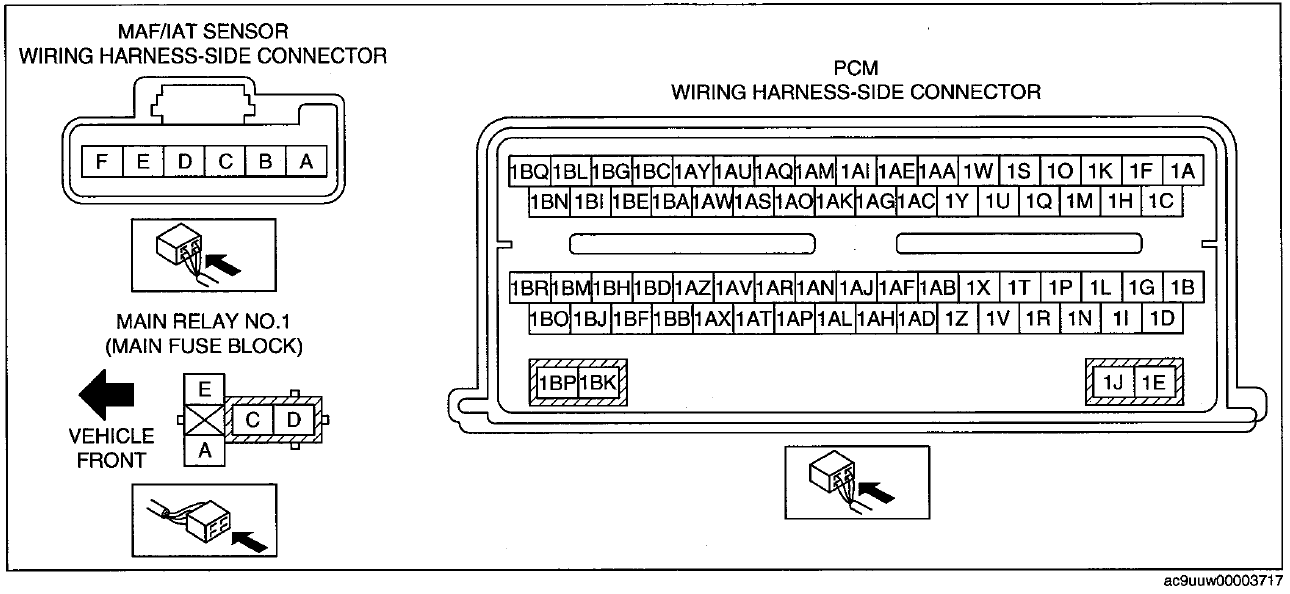

Fig 1: Identifying MAF/IAT Sensor Connector Terminals
G00512261Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)
  2. Disconnect the MAF/IAT sensor connector.
  3. Disconnect the PCM connector.
  4. Inspect the following wiring harnesses for open or short. (Continuity inspection)
