Emission Control Systems: Locations

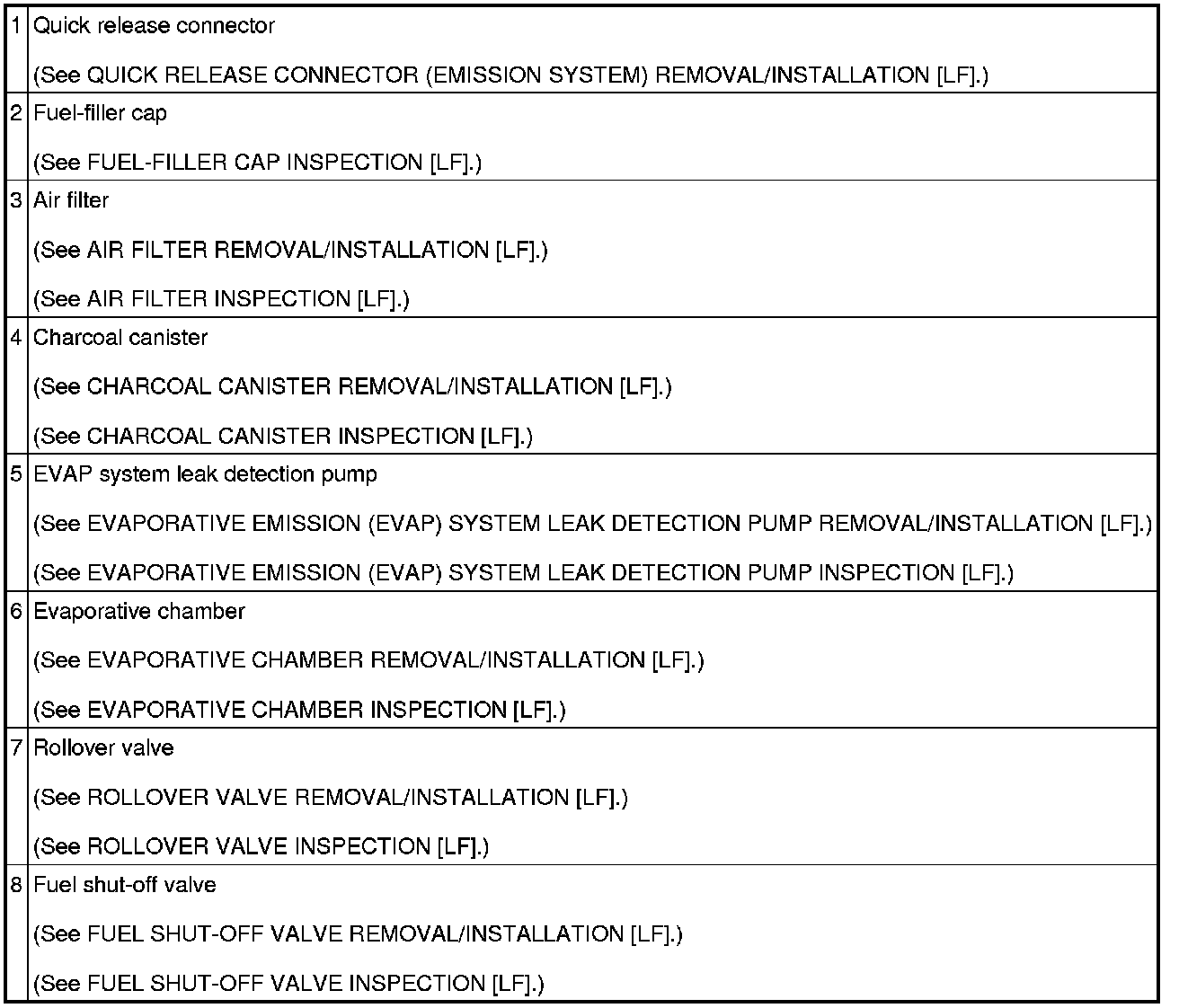

EMISSION SYSTEM LOCATION INDEX [LF]

Engine Compartment Side

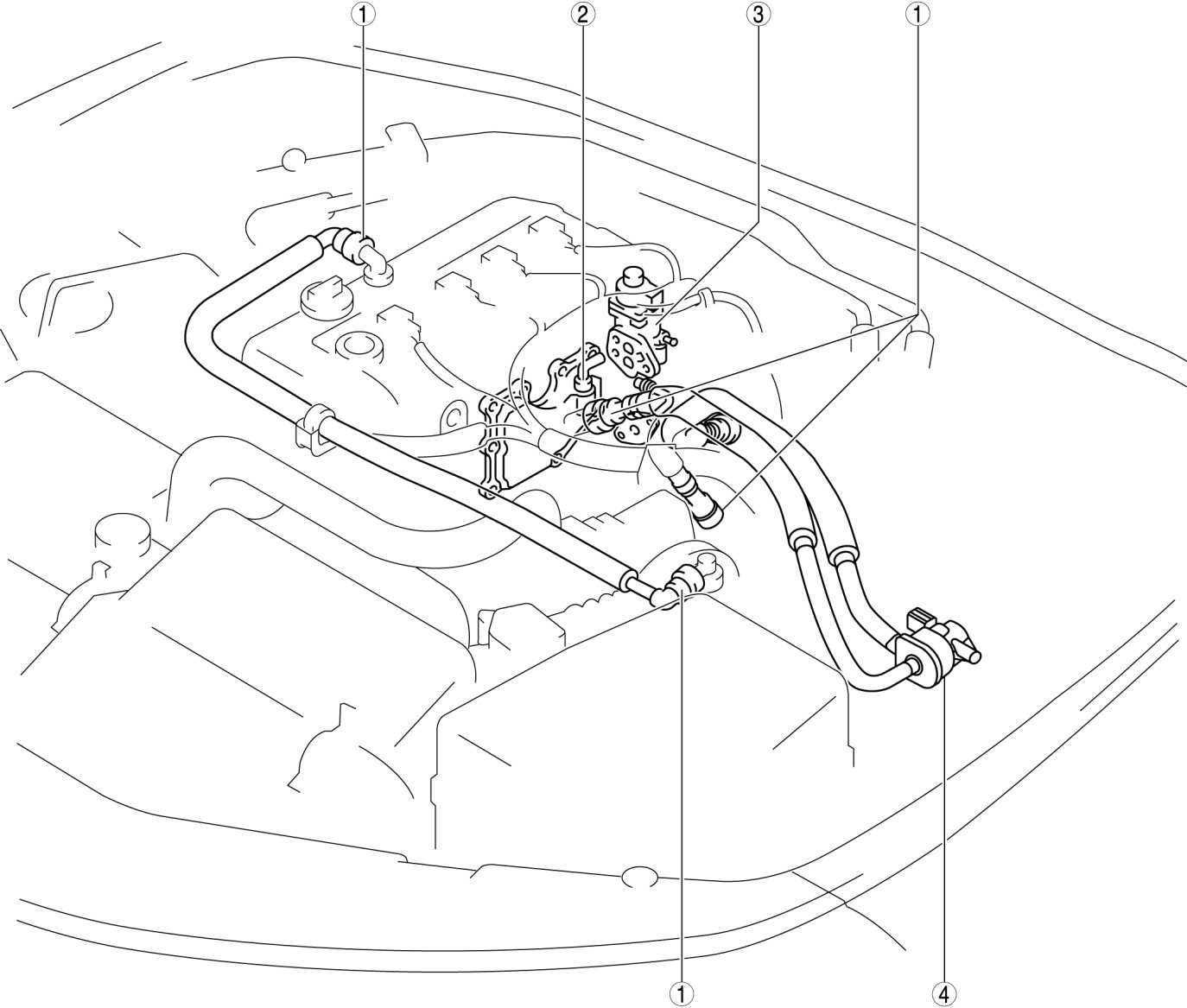

Except 6MT

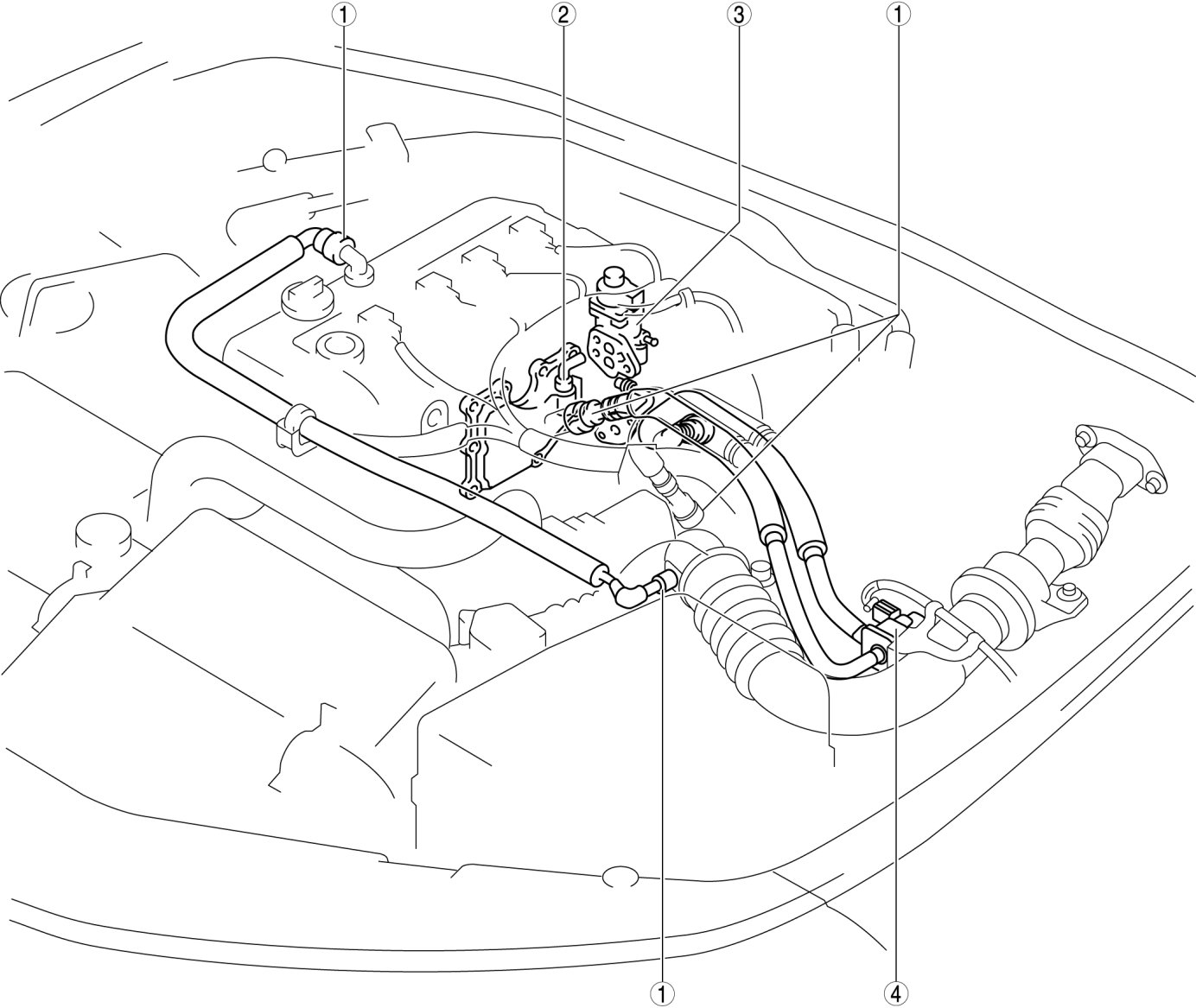

6MT

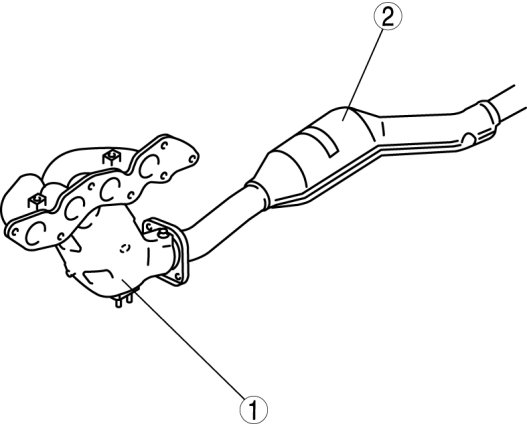

Exhaust System Side

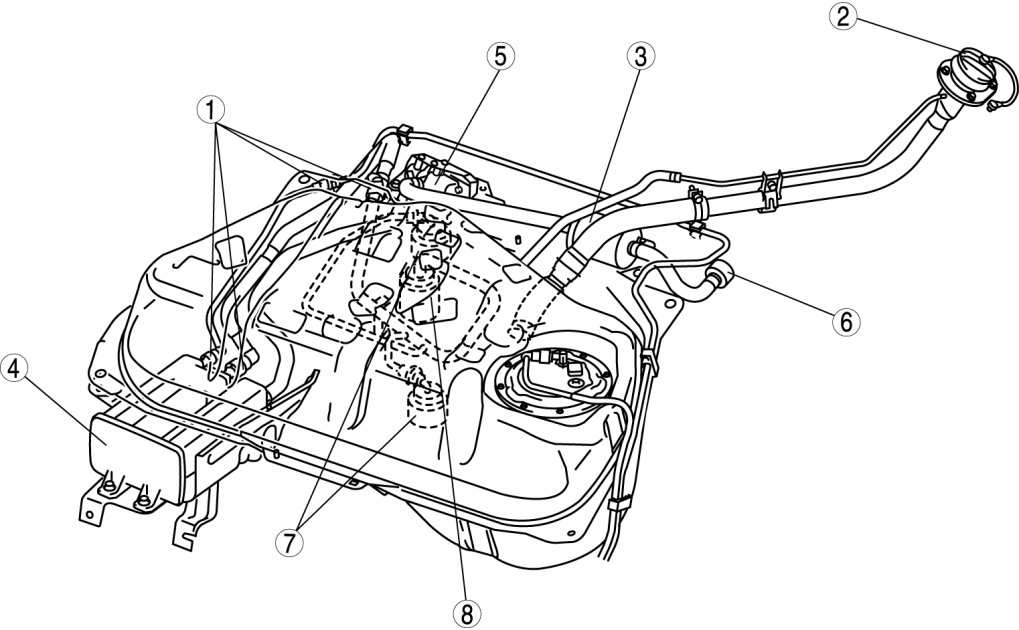

Fuel Tank Side
