Keyless Antenna Removal/Installation - With Advanced Keyless Entry And Start System

KEYLESS ANTENNA REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND START SYSTEM]

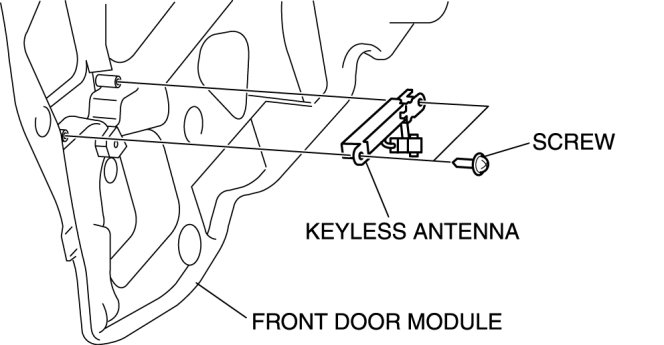

Driver-side/passenger-side Door

1. Disconnect the negative battery cable.

2. Remove the door trim. Front Door Trim Removal/Installation

3. Remove the screws.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.

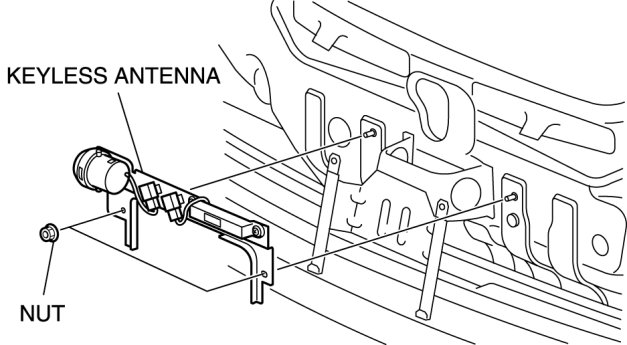

Exterior, Rear

1. Disconnect the negative battery cable.

2. Remove the rear bumper. Removal and Replacement

3. Remove the nuts.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.

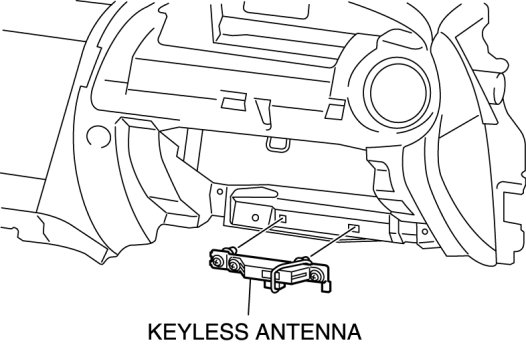

Interior, Front

1. Disconnect the negative battery cable.

2. Remove the glove compartment. Service and Repair

3. Disconnect the connector, then remove the screws.

4. Remove the keyless antenna.






5. Install in the reverse order of removal.

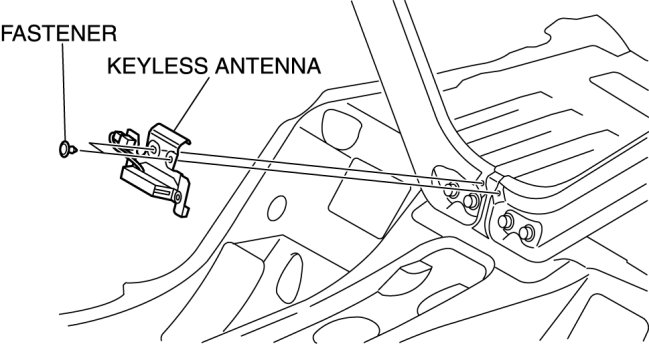

Interior, Middle

1. Disconnect the negative battery cable.

2. Remove the console. Removal and Replacement

3. Remove the clips.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.

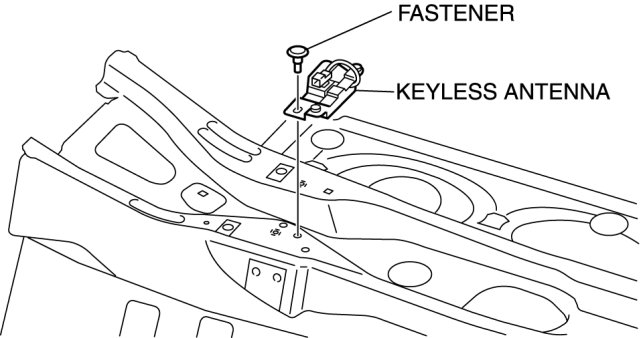

Interior, Rear

1. Disconnect the negative battery cable.

2. Remove the console. Removal and Replacement

3. Remove the fastener.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.

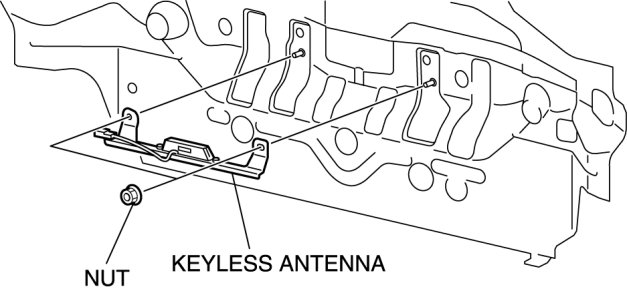

Interior, trunk

1. Disconnect the negative battery cable.

2. Remove the trunk end trim. Trunk End Trim Removal/Installation

3. Remove the nuts.

4. Disconnect the connector, then remove the keyless antenna.






5. Install in the reverse order of removal.
