Fluid - A/T: Testing and Inspection

AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [SJ6A-EL]

Automatic Transmission Fluid (ATF) Condition Inspection

1. Inspect the ATF for the following to determine whether the transmission should be disassembled.

- The ATF is muddy.
- The ATF smells strange or unusual.

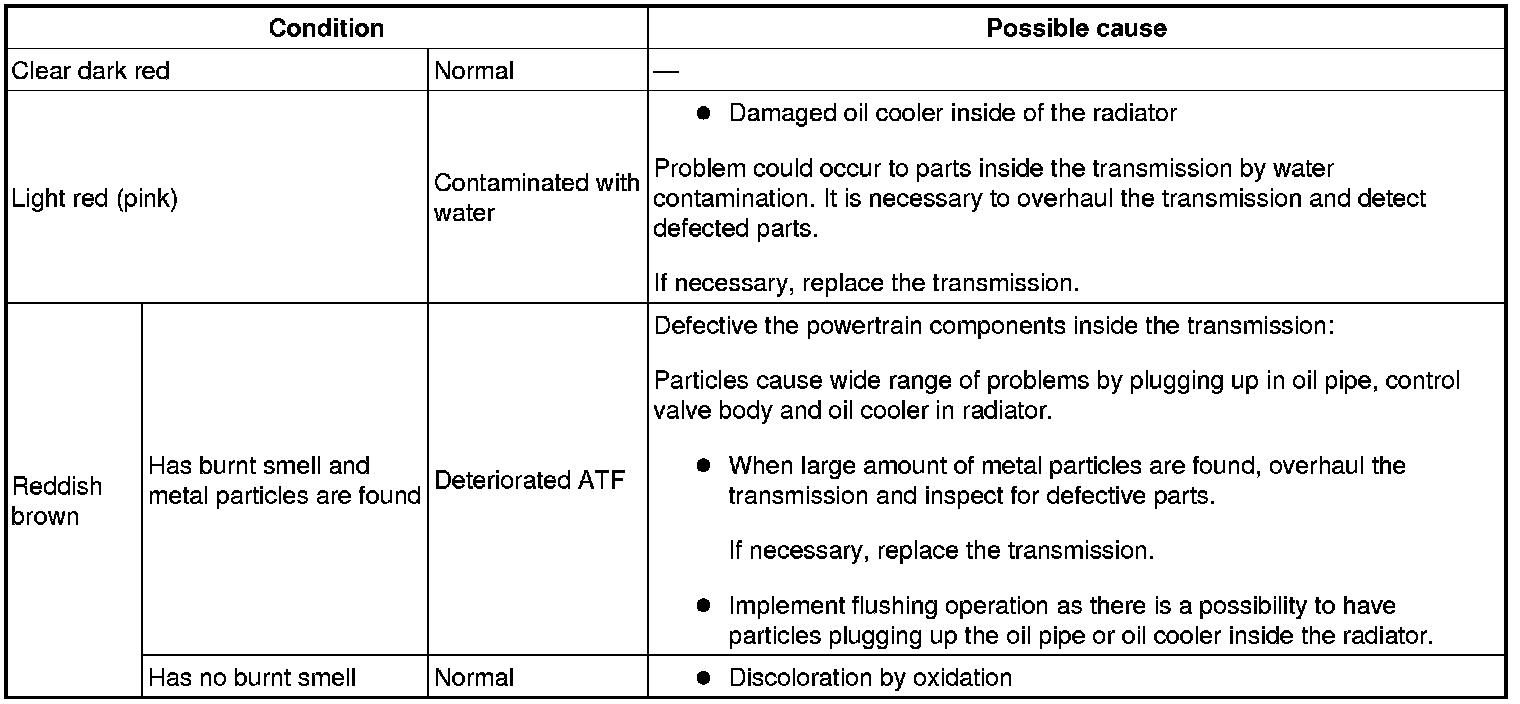

ATF Condition
