Fluid - M/T: Testing and Inspection

TRANSMISSION OIL INSPECTION [P66M-D]

1. Position the vehicle on level ground.

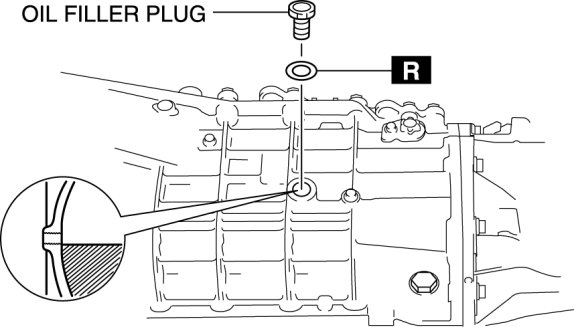

2. Remove the oil filler plug with washer.






3. Verify that the transmission oil is near the brim of the plug port.

- If the oil is not near the brim of the plug port, add the specified amount and type of oil.

Specified manual transmission oil grade
- API Service GL-4

Specified manual transmission oil viscosity
- SAE 75W-90

4. Install the oil filler plug and a new washer.

Tightening torque
- 40-59 Nm {4.1-6.0 kgf-m, 30-43 ft-lbf}
