Control Module: Service and Repair




TCM REMOVAL/INSTALLATION [SJ6A-EL]

1. Remove the engine cover. Service and Repair

2. Remove the battery cover.

3. Disconnect the negative battery cable.

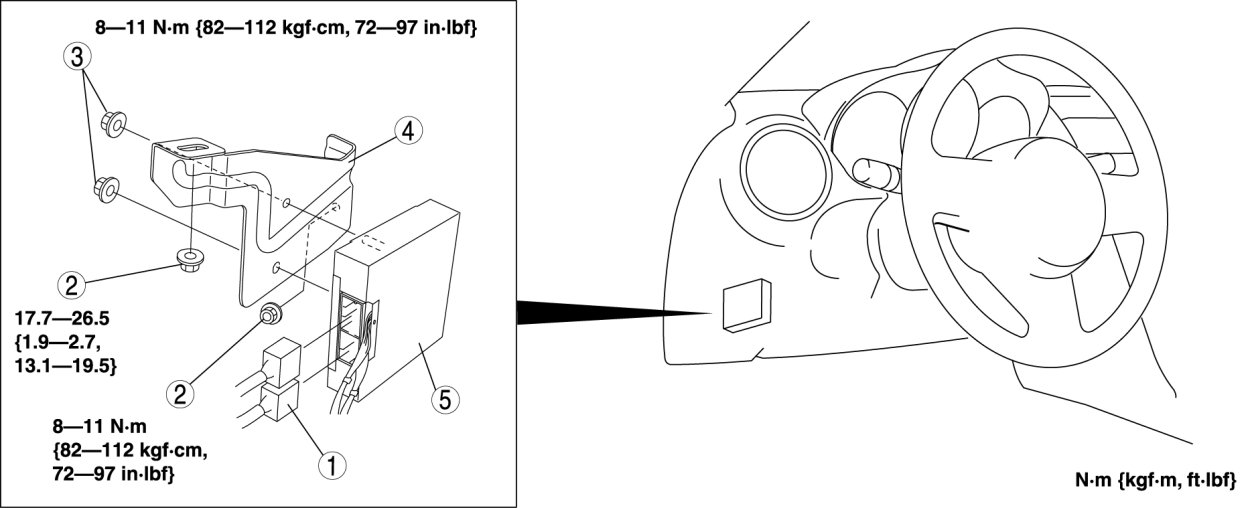

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
