System Diagram

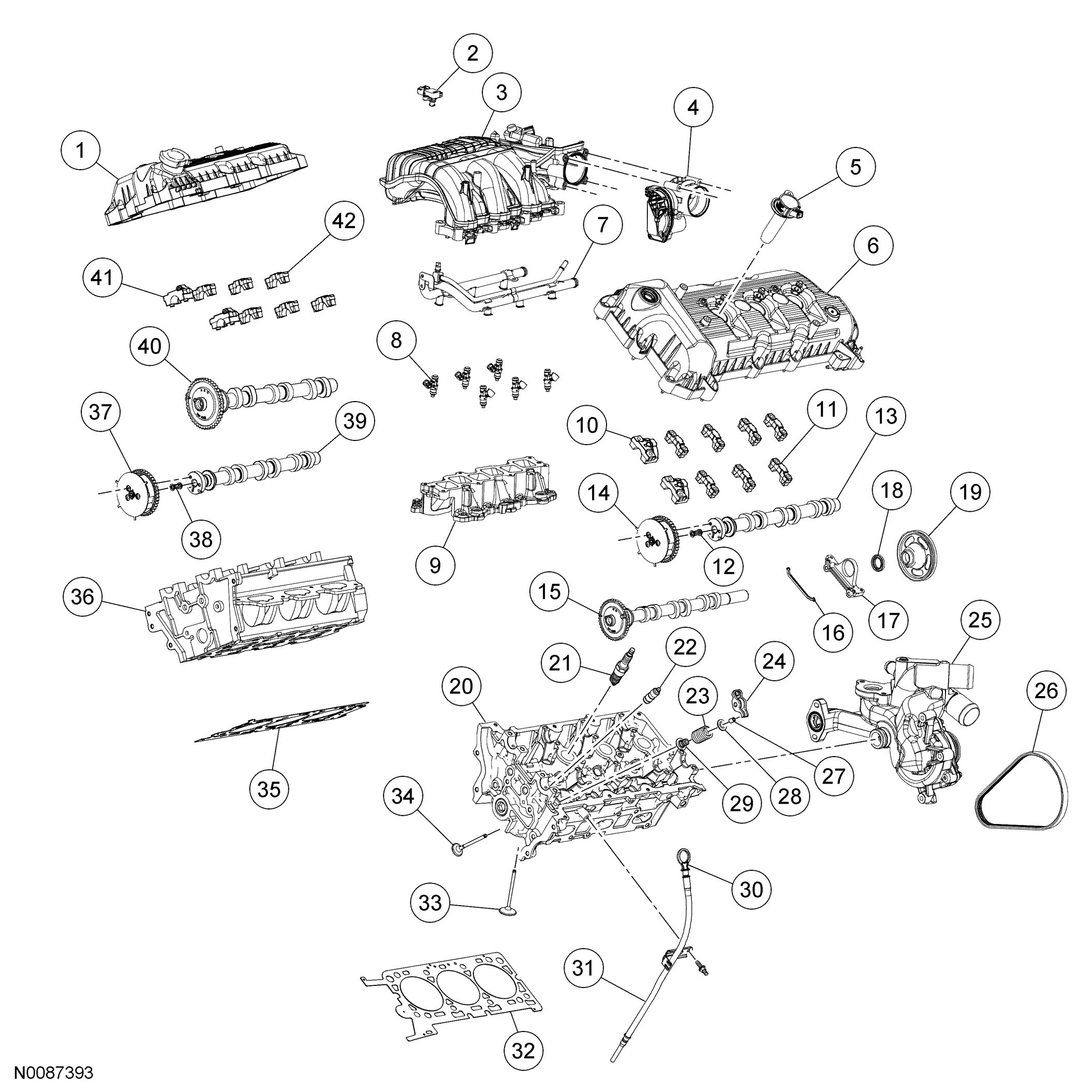

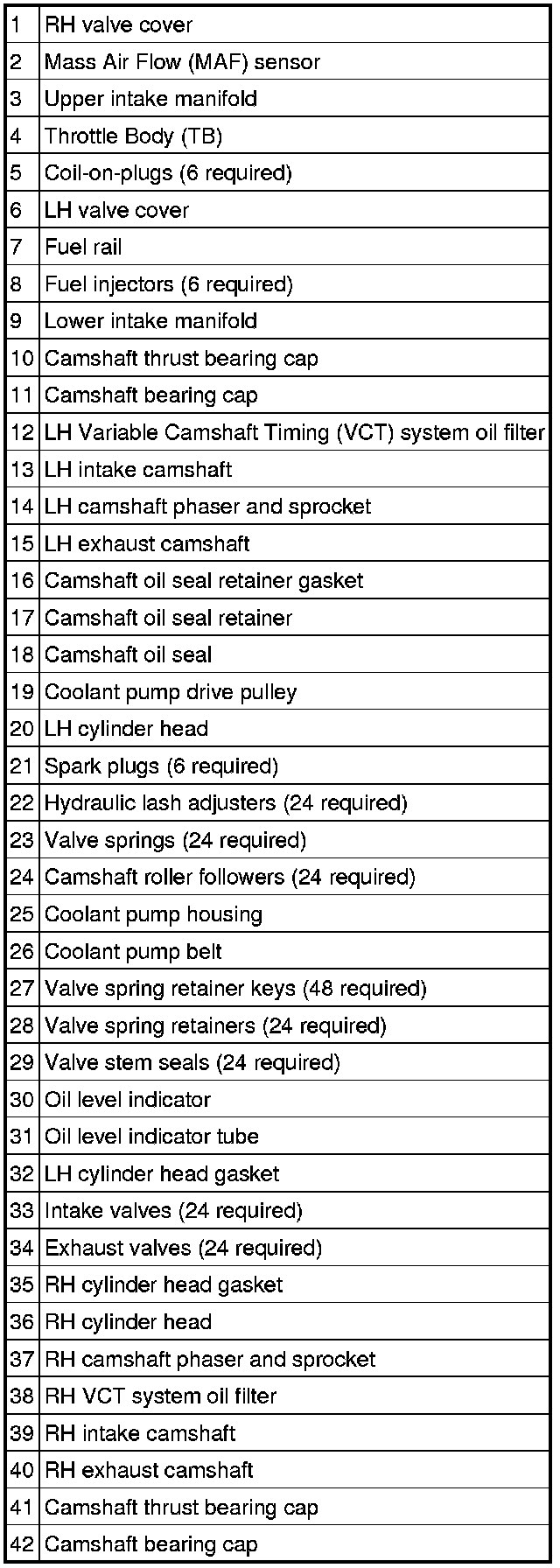

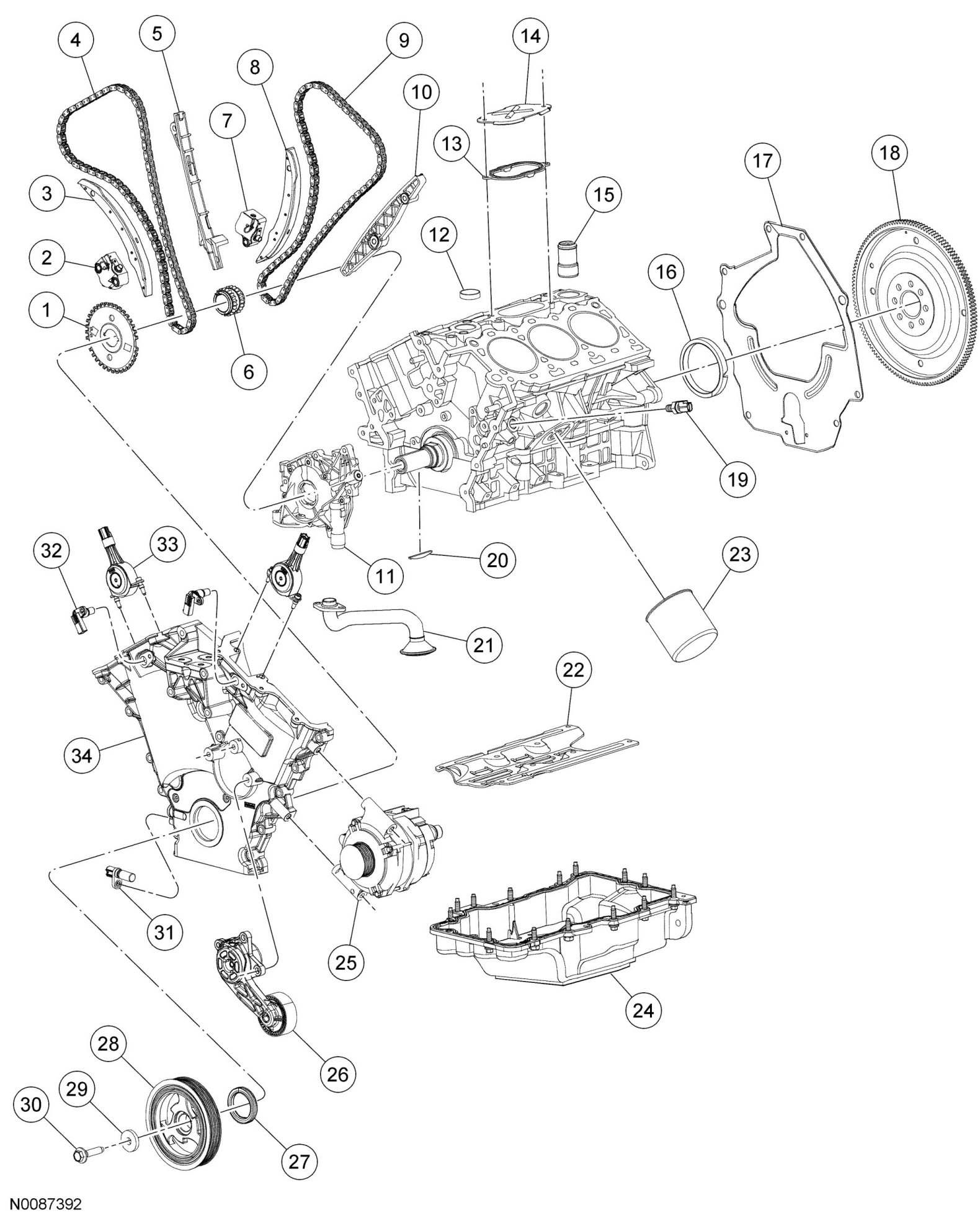

FRONT AND LOWER ENGINE BLOCK- 3.0L EXPLODED VIEW

















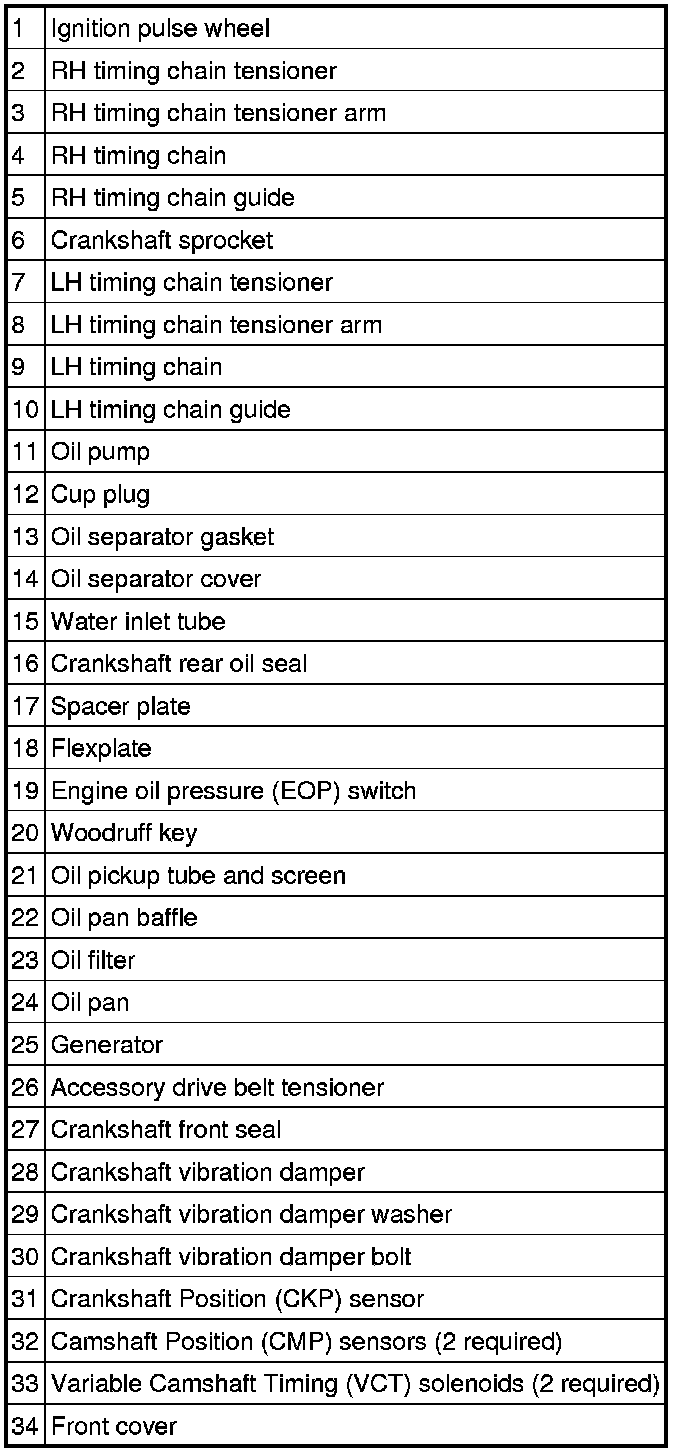

1. For additional information, see the procedures.
