Timing Components

VALVE TRAIN COMPONENTS EXPLODED VIEW - 3.0L

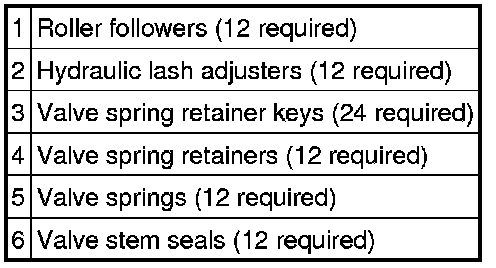

LH Side Roller Follower, Hydraulic Lash Adjuster and Valve Spring

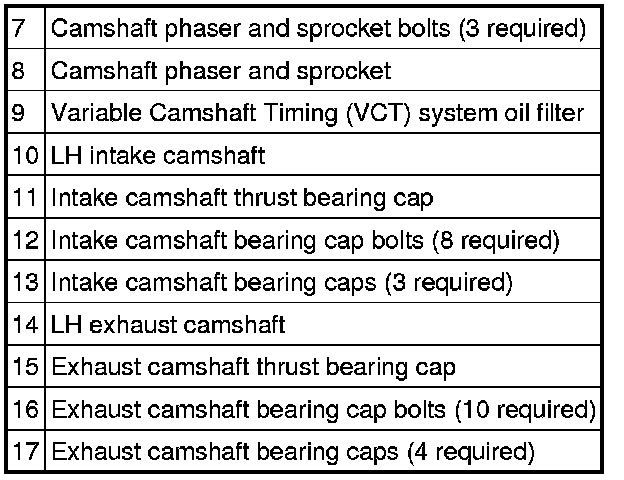

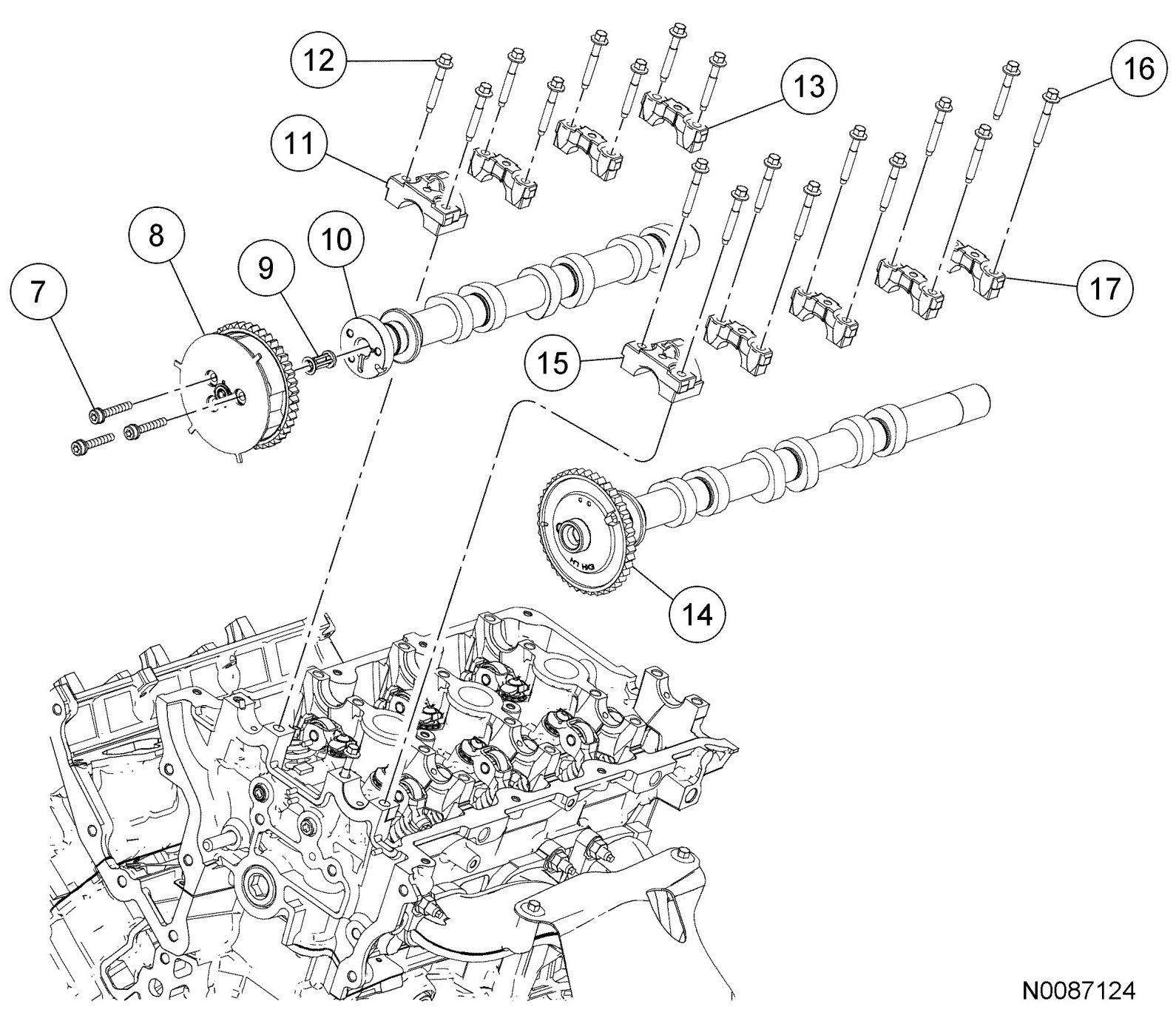

LH Side Intake and Exhaust Camshafts

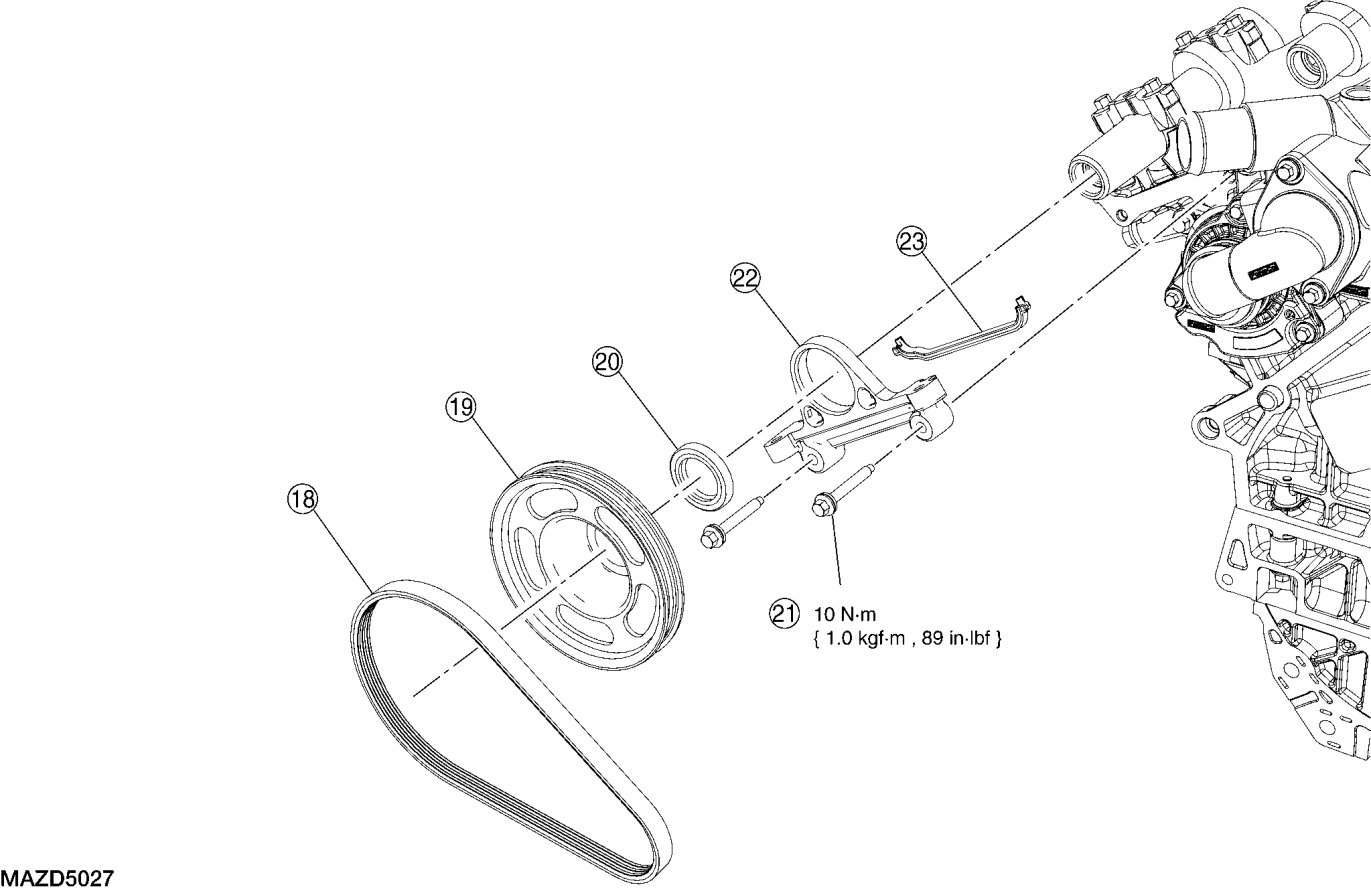

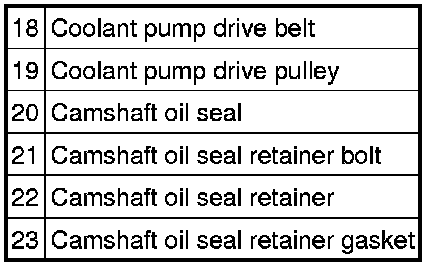

Coolant Pump Belt and Pulley

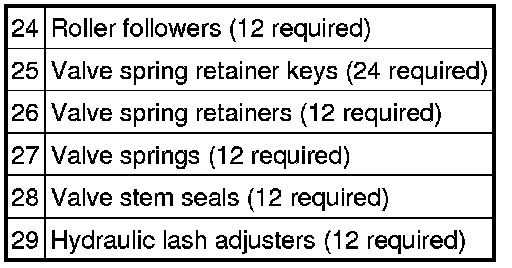

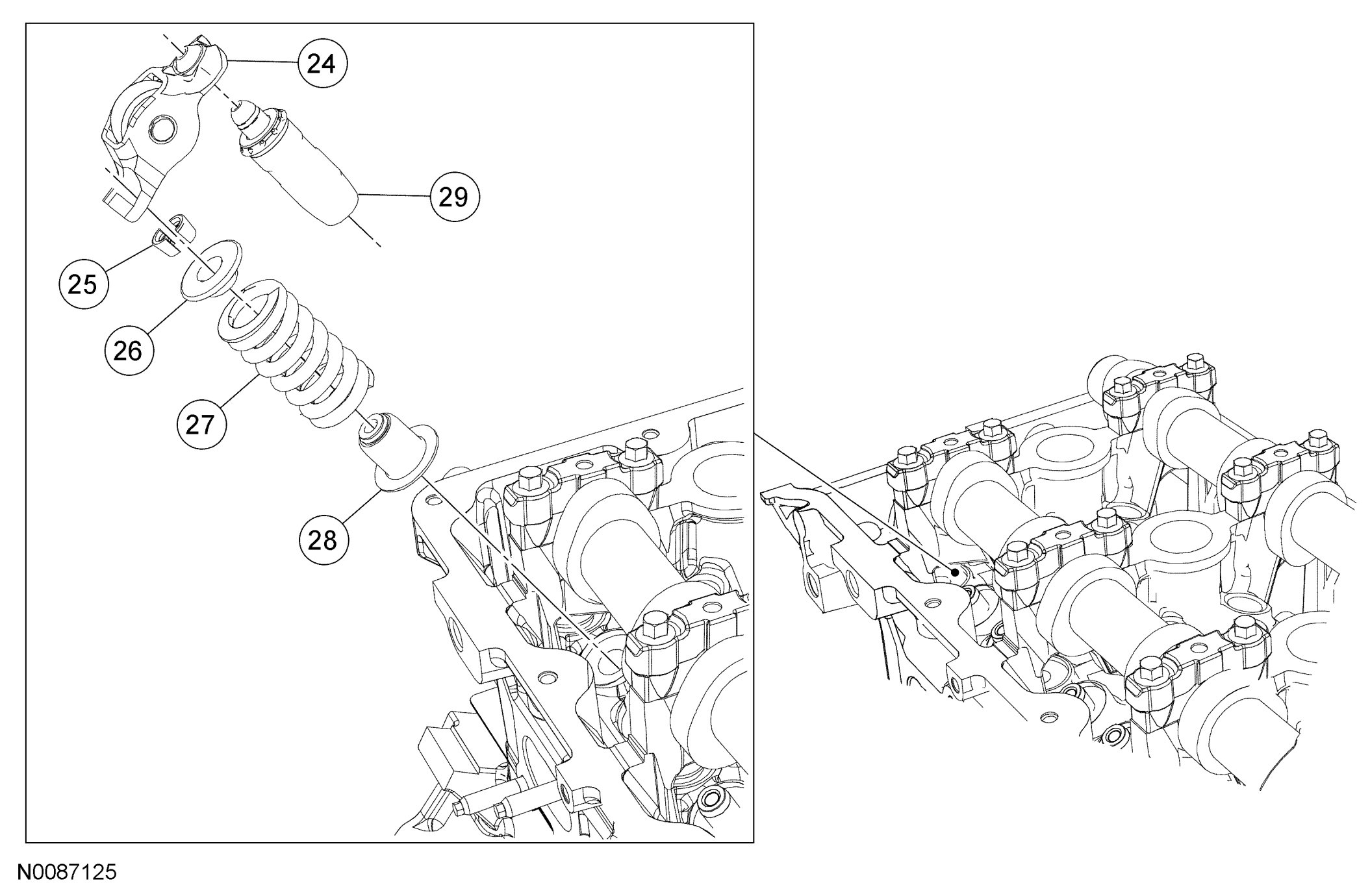

RH Side Roller Follower, Hydraulic Lash Adjuster and Valve Spring

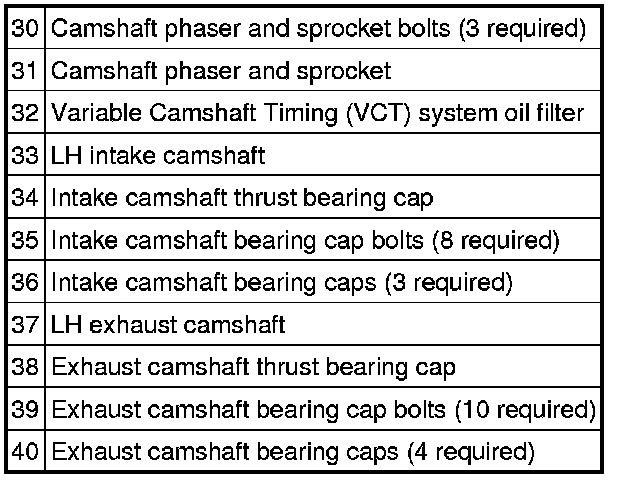

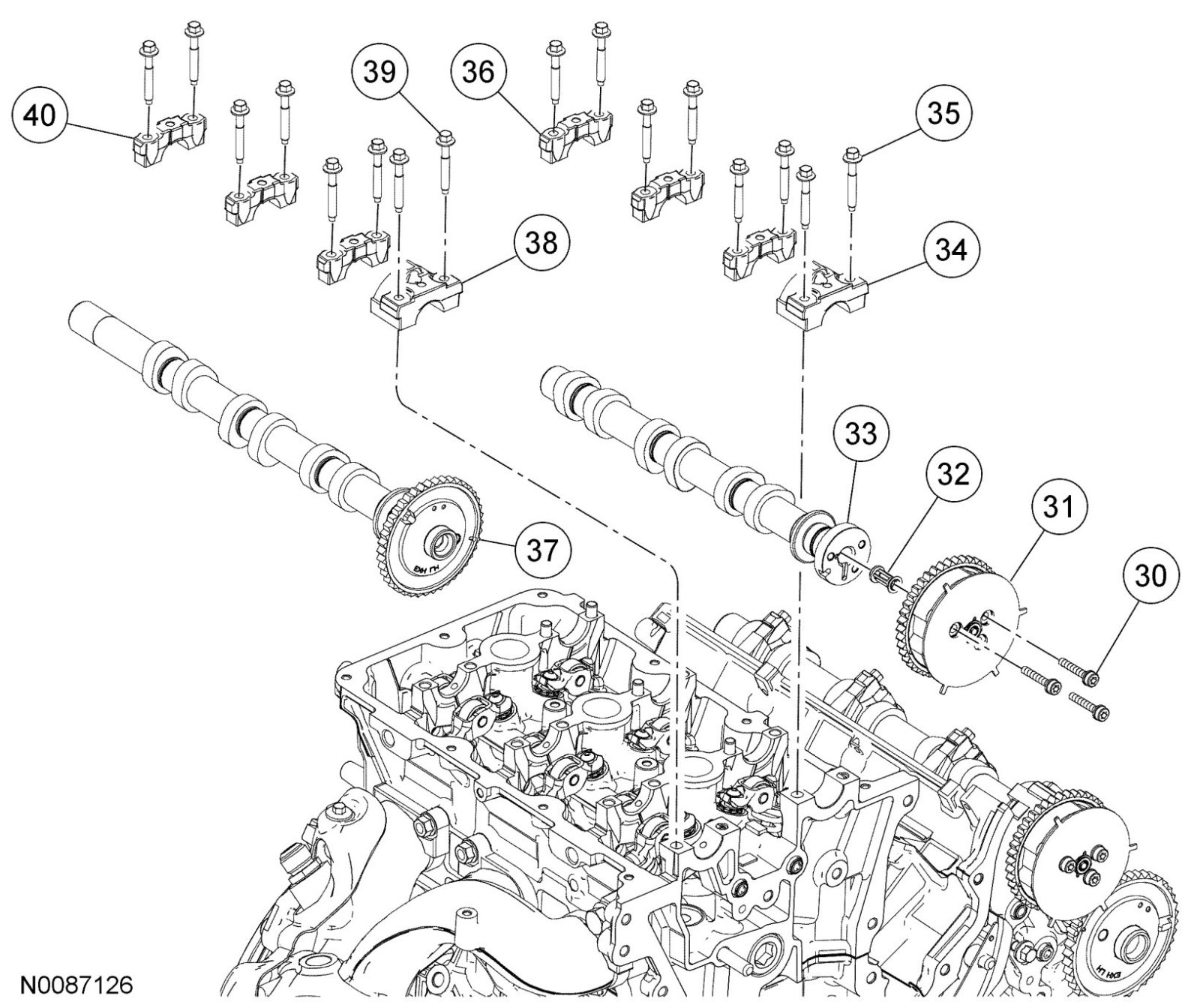

RH Side Intake and Exhaust Camshaft










1. For additional information, see the procedures.
