Air Flow Meter/Sensor: Service and Repair

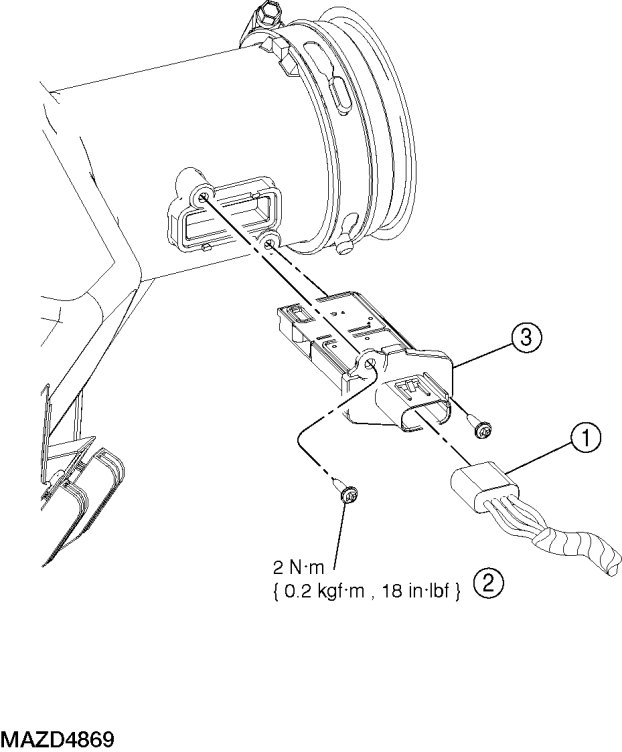

MASS AIR FLOW (MAF) SENSOR REMOVAL/INSTALLATION - 3.0L









CAUTION:The mass air flow (MAF) sensor electronics module and body are calibrated as a unit and must be serviced as a unit. Do not tamper with the sensing elements located in the air flow bypass of the MAF body.

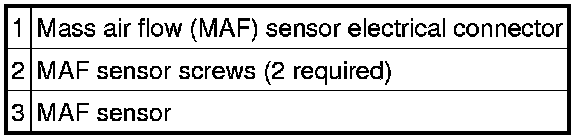

1. Disconnect the mass air flow (MAF) sensor electrical connector.

2. Remove the 2 screws and the MAF sensor.

- To install, tighten to 2 Nm {0.2 kgf-m, 18 in-lbf}.

3. To install, reverse the removal procedure.
