Engine Temperature Sensor: Service and Repair

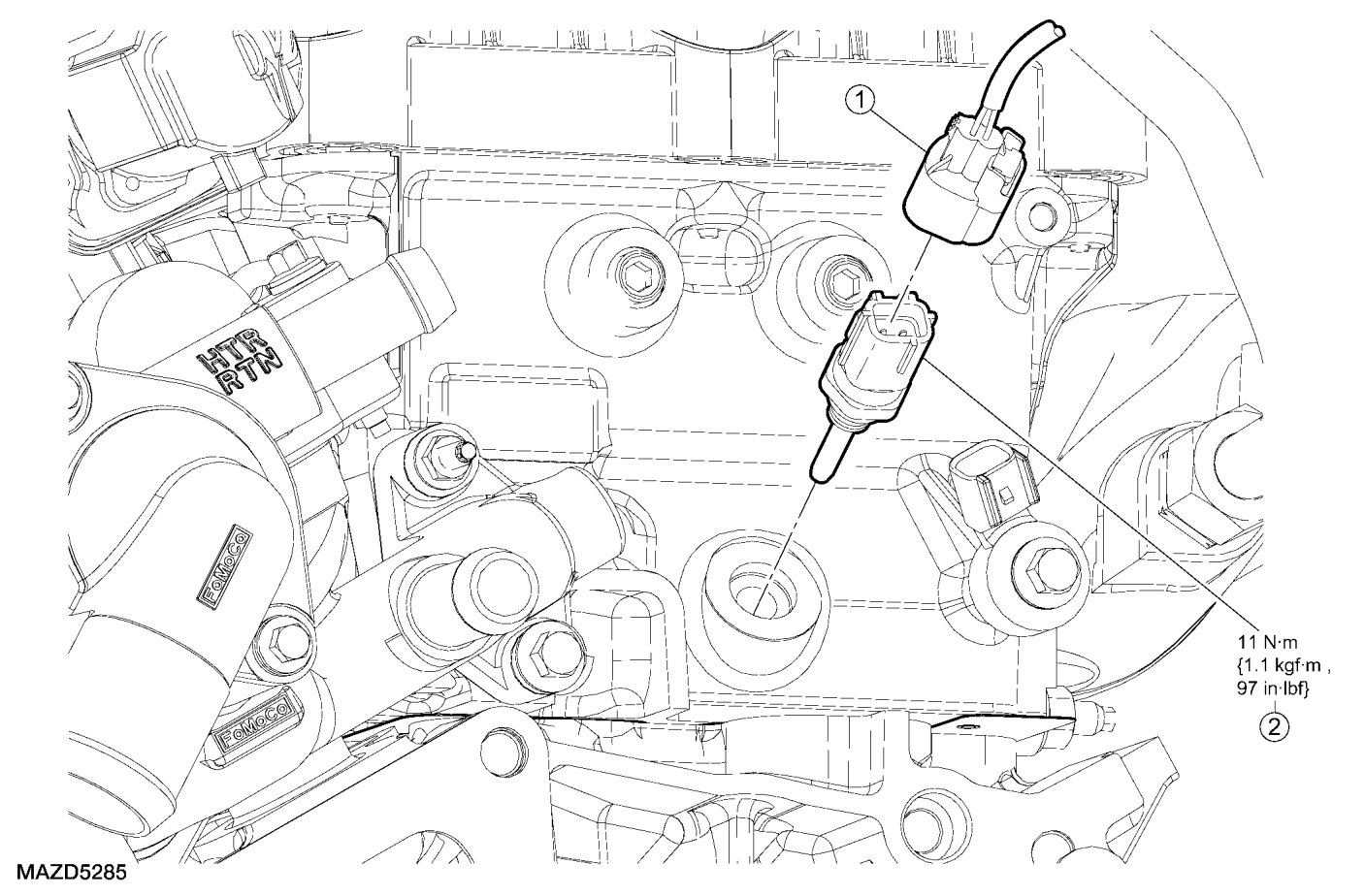

CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL/INSTALLATION - 3.0L









1. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

NOTE:If the cylinder head is being replaced, the CHT must be replaced.
2. Remove the CHT sensor.

- To install, tighten to 11 Nm {1.1 kgf-m, 97 in-lbf}.

3. To install, reverse the removal procedure.
