Manifold Absolute Pressure (Map) Sensor Removal/Installation - 2.5L

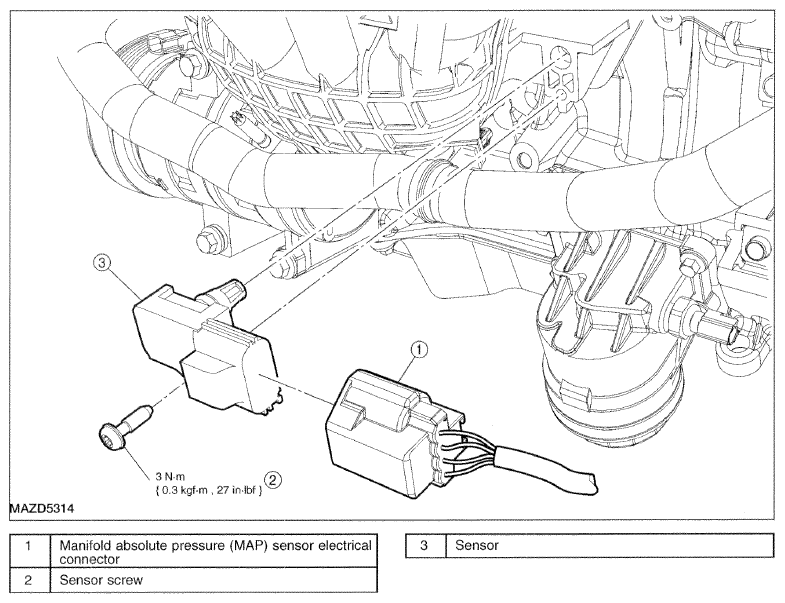

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications (2.5L)

Courtesy of MAZDA MOTORS CORP.

1. With the vehicle in NEUTRAL, position it on a hoist. See LIFTING .
2. Disconnect the MAP electrical connector.
3. Using a tool like KD Tool #58181 or Lisle T25 Torx Bit, remove the screw and the MAP sensor.
   • To install, tighten to 3 N.m (0.3 kgf.m, 27 in.lbf).
4. To install, reverse the removal procedure.
   NOTE:

   • Lubricate the MAP sensor O-ring seal with clean engine oil.
