Overhaul

AIR INTAKE DUCT DISASSEMBLY/ASSEMBLY

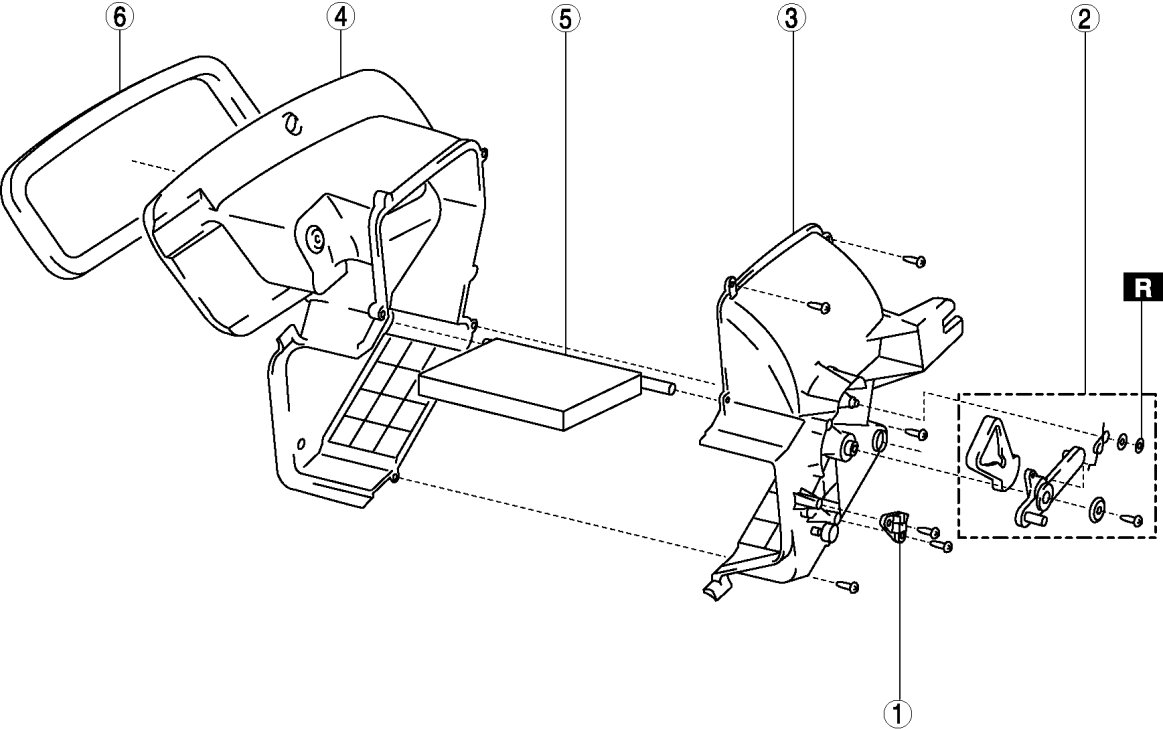

1. Disassemble in the order indicated in the table.

CAUTION:
- Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.

2. Assemble in the reverse order of disassembly.









Air Intake Duct Case Disassembly Note

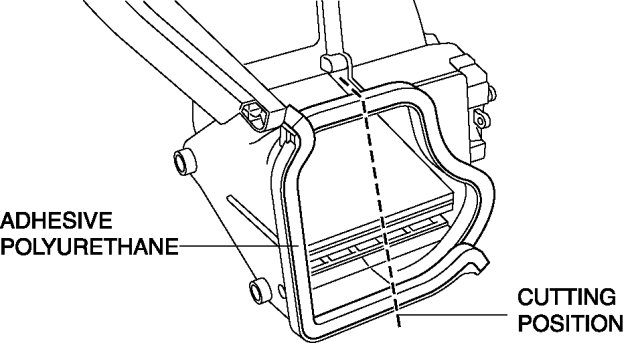

1. Align the contacting surfaces of air intake duct case (1) and (2), and cut the adhesive polyurethane.
