Blower Motor: Testing and Inspection

BLOWER MOTOR INSPECTION [MANUAL AIR CONDITIONER]

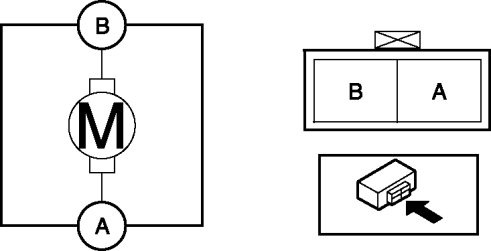

1. Connect battery positive voltage to terminal B and ground to terminal A of the blower motor and verify its operation.






- If not as specified, replace the blower motor.
