Windshield Washer Switch: Service and Repair

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Disconnect the connector.

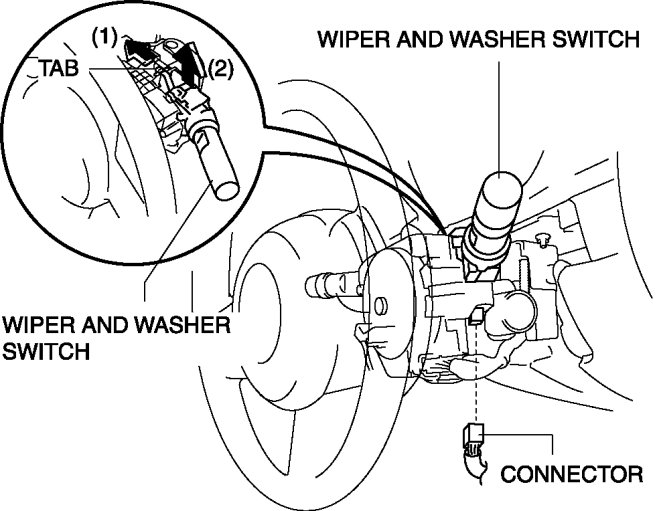

4. Release the tab in the direction of the arrow (1) shown in the figure, pull up the wiper and washer switch in the direction of the arrow (2), and remove it.

5. Install in the reverse order of removal.
