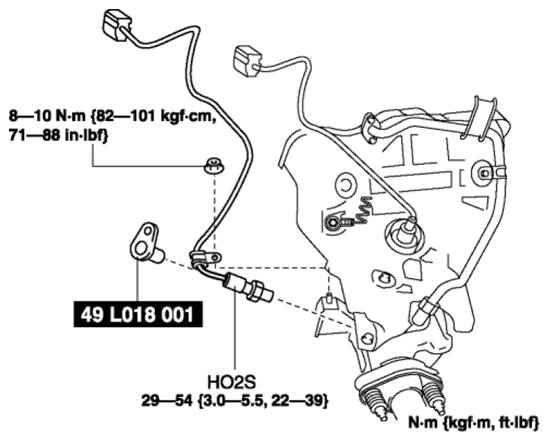

Heated Oxygen Sensor (Ho2S) Removal/Installation
WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
- Disconnect the negative battery cable.
- Remove the air cleaner cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the HO2S connector.
- Remove the HO2S using the SST.
- Install in the reverse order of removal.
